ATP101-TL-H

Teknik Özellikler

Montaj Tipi

Surface Mount

Lifecycle Status

ACTIVE (Last Updated: 14 hours ago)

Rds On Max Id Vgs

30m Ω @ 13A, 10V

Transistor Application

SWITCHING

Case Connection

DRAIN

Yükseklik

1.5mm

Turn On Delay Time

9.2 ns

Halogen Free

Halogen Free

Genişlik

7.3mm

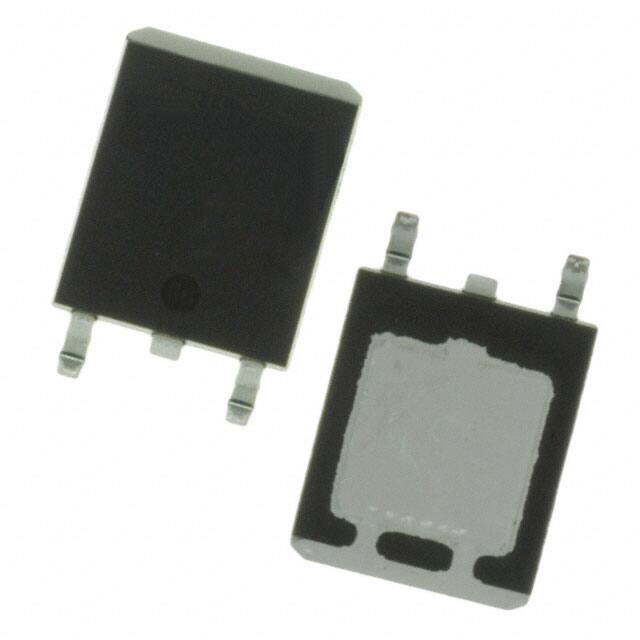

Kılıf / Paket

ATPAK (2 leads+tab)

Parça Durumu

Active

Input Capacitance Ciss Max Vds

875pF @ 10V

Gate Charge Qg Max Vgs

18.5nC @ 10V

Ambalaj

Tape & Reel (TR)

Number Of Elements

1

JESD-609 Kodu

e6

Element Configuration

Single

Avalanche Energy Rating Eas

25 mJ

Jesd30 Code

R-PSSO-G2

Transistor Element Material

SILICON

Nem Hassasiyeti (MSL)

1 (Unlimited)

Rise Time

70ns

Drain To Source Breakdown Voltage

30V

Fet Type

P-Channel

Turn Off Delay Time

80 ns

Gate To Source Voltage Vgs

20V

Kurşunsuz Kodu

yes

Terminal Sayısı

2

ECCN Kodu

EAR99

Pin Sayısı

3

Uzunluk

6.5mm

Fall Time Typ

70 ns

Terminal Kaplaması

Tin/Bismuth (Sn/Bi)

Çalışma Sıcaklığı

150°C TJ

RoHS Durumu

ROHS3 Compliant

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Power Dissipation Max

30W Tc

Power Dissipation

30W

Operating Mode

ENHANCEMENT MODE

Pin Sayısı

3
