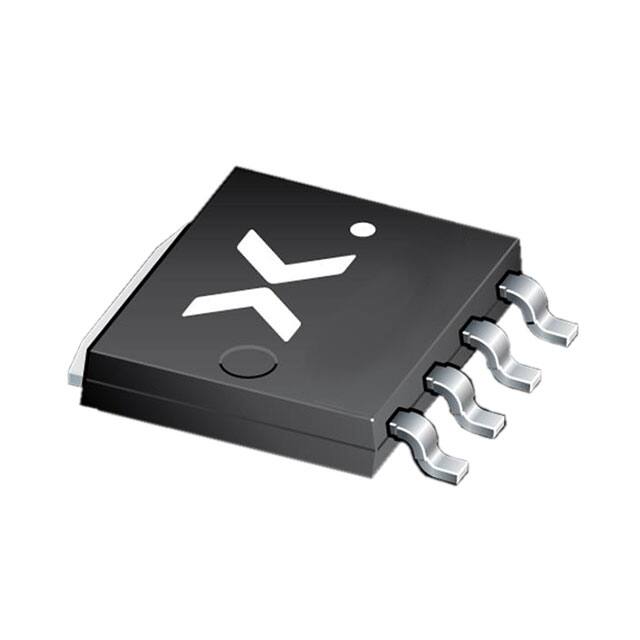

PSMN0R7-25YLDX

Teknik Özellikler

Additional Feature

HIGH RELIABILITY

Pin Sayısı

4

Drain To Source Voltage Vdss

25V

Ambalaj

Tape & Reel (TR)

Drainsource On Resistancemax

0.00092Ohm

Çalışma Sıcaklığı

-55°C~150°C TJ

Ds Breakdown Voltagemin

25V

RoHS Durumu

ROHS3 Compliant

Operating Mode

ENHANCEMENT MODE

Montaj

Surface Mount

Vgsth Max Id

2.2V @ 1mA

Fet Type

N-Channel

Transistor Element Material

SILICON

Terminal Pozisyonu

SINGLE

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Current Continuous Drain Id25

300A Tc

Case Connection

DRAIN

Fabrika Tedarik Süresi

12 Weeks

Input Capacitance Ciss Max Vds

8320pF @ 12V

Continuous Drain Current Id

300A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Transistor Application

SWITCHING

Rds On Max Id Vgs

0.72m Ω @ 25A, 10V

Yayın Yılı

2016

Terminal Sayısı

4

Parça Durumu

Active

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Configuration

SINGLE WITH BUILT-IN DIODE

Pin Sayısı

4

Gate Charge Qg Max Vgs

110.2nC @ 10V

Terminal Formu

GULL WING

Kılıf / Paket

SOT-1023, 4-LFPAK

Vgs Max

±20V

Number Of Elements

1

Power Dissipation Max

158W Tc
