Adet bazlı fiyat
- 1+ adet$0.84
- 10+ adet$0.79
- 100+ adet$0.74
- 500+ adet$0.70
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Current Continuous Drain Id25
- 7.3A Ta
- Drive Voltage Max Rds On Min Rds On
- 1.5V 4.5V
- Operating Mode
- ENHANCEMENT MODE
- Yayın Yılı
- 2015
- Parça Durumu
- Active
- Configuration
- SINGLE WITH BUILT-IN DIODE
- Ambalaj
- Tape & Reel (TR)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Drainsource On Resistancemax
- 0.022Ohm
- Jesd30 Code
- R-PBGA-B6
- Fabrika Tedarik Süresi
- 13 Weeks
- Continuous Drain Current Id
- 7.3A
- Montaj
- Surface Mount
- Gate Charge Qg Max Vgs
- 24nC @ 4.5V
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Input Capacitance Ciss Max Vds
- 920pF @ 6V
- Power Dissipation Max
- 556mW Ta 12.5W Tc
- Rds On Max Id Vgs
- 18m Ω @ 3A, 4.5V
- Ds Breakdown Voltagemin
- 12V
- Vgsth Max Id
- 900mV @ 250μA
- Transistor Application
- SWITCHING
- RoHS Durumu
- ROHS3 Compliant
- Fet Type
- N-Channel
- Montaj Tipi
- Surface Mount
- Reference Standard
- IEC-60134
- Drain To Source Voltage Vdss
- 12V
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Terminal Formu
- BALL
- Terminal Pozisyonu
- BOTTOM
- Terminal Sayısı
- 6

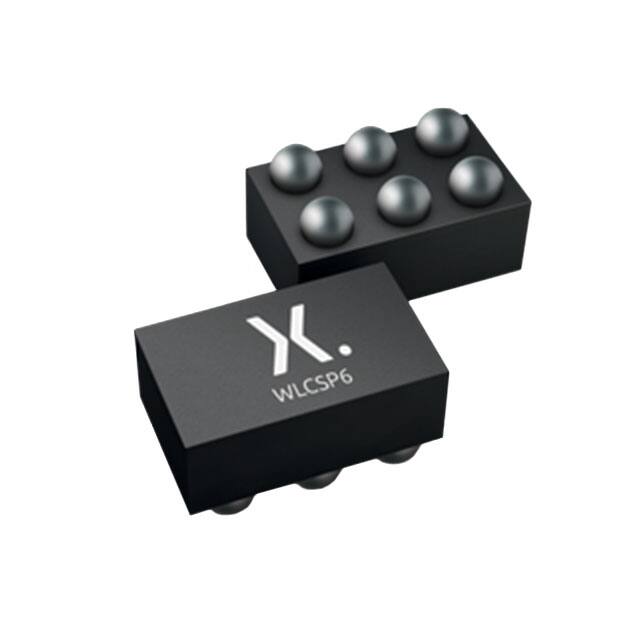

- Kılıf / Paket
- 6-XFBGA, WLCSP
- Transistor Element Material
- SILICON
- Number Of Elements
- 1
- Çalışma Sıcaklığı
- -55°C~150°C TJ
- Vgs Max
- ±8V
