2N7002BKMB,315

Teknik Özellikler

Montaj Tipi

Surface Mount

Drain Currentmax Abs Id

0.45A

Rise Time

6ns

Yüzey Montaj

YES

Turn On Delay Time

5 ns

Vgs Max

±20V

RoHS Durumu

ROHS3 Compliant

Current Continuous Drain Id25

450mA Ta

Power Dissipation

715mW

Rds On Max Id Vgs

1.6 Ω @ 450mA, 10V

Vgsth Max Id

2.1V @ 250μA

Gate To Source Voltage Vgs

20V

Terminal Pozisyonu

BOTTOM

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Elements

1

Radyasyon Dayanımı

No

Transistor Element Material

SILICON

Yayın Yılı

2017

Pin Sayısı

3

Power Dissipation Max

360mW Ta

Parça Durumu

Last Time Buy

Contact Plating

Tin

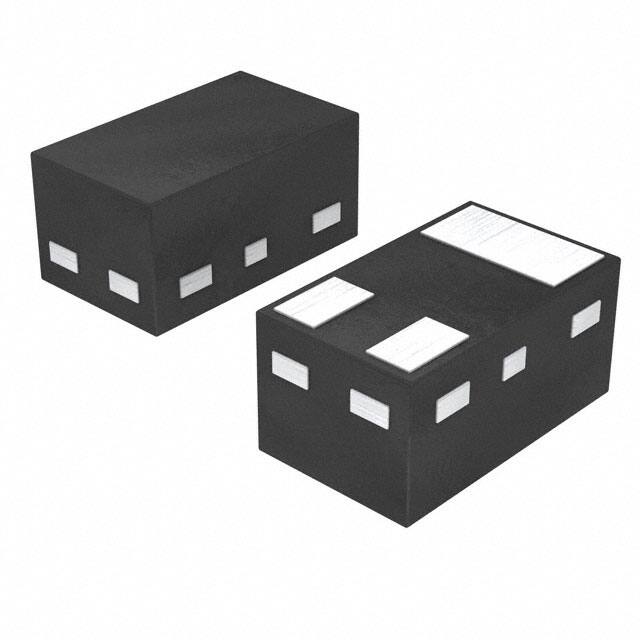

Kılıf / Paket

3-XFDFN

Continuous Drain Current Id

450mA

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-55°C~150°C TJ

Fet Type

N-Channel

Turn Off Delay Time

12 ns

Max Dual Supply Voltage

60V

Element Configuration

Single

JESD-609 Kodu

e3

Case Connection

DRAIN

Terminal Sayısı

3

Additional Feature

LOGIC LEVEL COMPATIBLE

Drive Voltage Max Rds On Min Rds On

10V

Input Capacitance Ciss Max Vds

50pF @ 10V

Fall Time Typ

7 ns

Drain To Source Breakdown Voltage

60V

Transistor Application

SWITCHING

Operating Mode

ENHANCEMENT MODE
