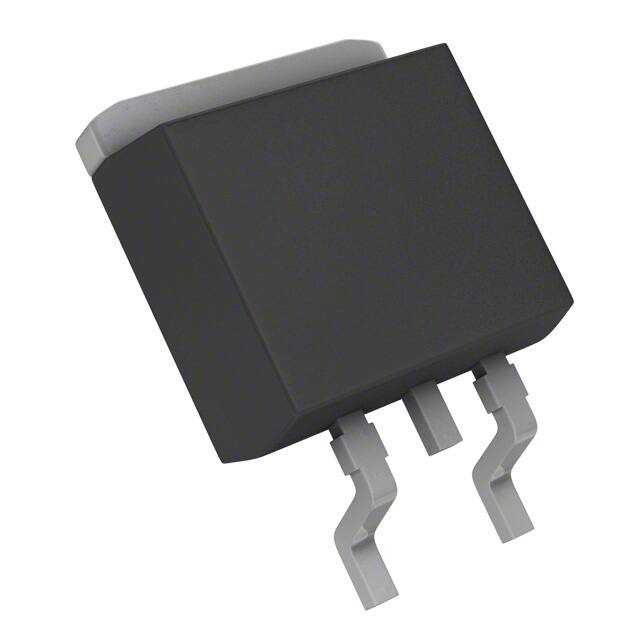

SPD08N50C3ATMA1

Teknik Özellikler

Voltage Rated Dc

560V

Drain To Source Breakdown Voltage

500V

Montaj Tipi

Surface Mount

Maks. Çalışma Sıcaklığı

150°C

Input Capacitance Ciss Max Vds

750pF @ 25V

Dual Supply Voltage

560V

Turn On Delay Time

6 ns

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vgs Max

±20V

Rise Time

5ns

Element Configuration

Single

Threshold Voltage

3V

Drive Voltage Max Rds On Min Rds On

10V

Power Dissipation

83W

Rds On Max Id Vgs

600mOhm @ 4.6A, 10V

Seri

CoolMOS™

Gate Charge Qg Max Vgs

32nC @ 10V

Min. Çalışma Sıcaklığı

-55°C

Reach Svhc

No SVHC

Ambalaj

Tape & Reel (TR)

Uzunluk

6.73mm

Rds On Max

600 mΩ

Nominal Vgs

3 V

Yükseklik

2.41mm

Tedarikçi Cihaz Paketi

PG-TO252-3-1

Çalışma Sıcaklığı

-55°C~150°C TJ

Terminal

SMD/SMT

Power Dissipation Max

83W Tc

Input Capacitance

750pF

Drain To Source Resistance

600mOhm

Continuous Drain Current Id

7.6A

Genişlik

6.22mm

Fall Time Typ

7 ns

Parça Durumu

Not For New Designs

Contact Plating

Tin

Current Continuous Drain Id25

7.6A Tc

Number Of Elements

1

Turn Off Delay Time

60 ns

Drain To Source Voltage Vdss

500V

Yayın Yılı

2005
