IRL7486MTRPBF

Teknik Özellikler

Kurşunsuz

Lead Free

Case Connection

DRAIN

Kılıf / Paket

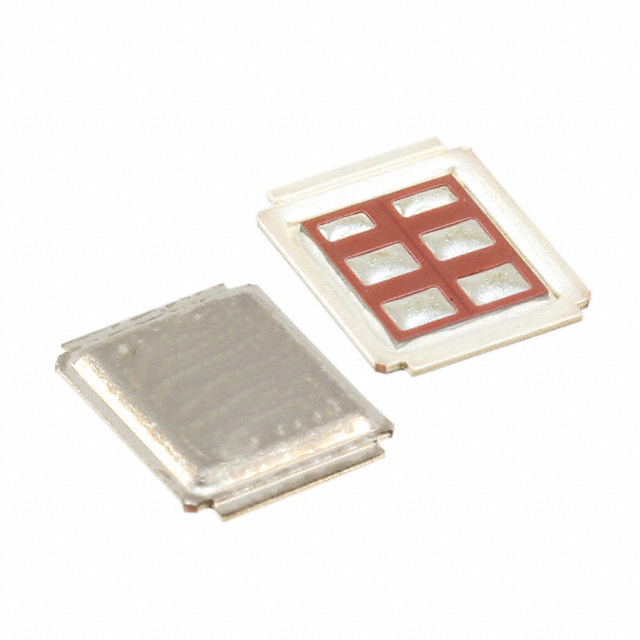

DirectFET™ Isometric ME

Avalanche Energy Rating Eas

190 mJ

Montaj Tipi

Surface Mount

Vgs Max

±20V

Yükseklik

700μm

RoHS Durumu

ROHS3 Compliant

Pin Sayısı

2

Number Of Elements

1

Fabrika Tedarik Süresi

12 Weeks

Vgsth Max Id

2.5V @ 150μA

Pulsed Drain Currentmax Idm

836A

Power Dissipation Max

104W Tc

Montaj

Surface Mount

Jesd30 Code

R-XBCC-N6

Parça Durumu

Active

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2013

Seri

HEXFET®, StrongIRFET™

Turn On Delay Time

35 ns

Drain To Source Voltage Vdss

40V

Terminal Pozisyonu

BOTTOM

Operating Mode

ENHANCEMENT MODE

Ambalaj

Tape & Reel (TR)

Element Configuration

Single

Gate Charge Qg Max Vgs

111nC @ 4.5V

Current Continuous Drain Id25

209A Tc

Transistor Application

SWITCHING

Drive Voltage Max Rds On Min Rds On

4.5V 10V

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-55°C~150°C TJ

Gate To Source Voltage Vgs

20V

Threshold Voltage

1.8V

Ds Breakdown Voltagemin

40V

Genişlik

5.05mm

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Formu

NO LEAD

Fet Type

N-Channel
