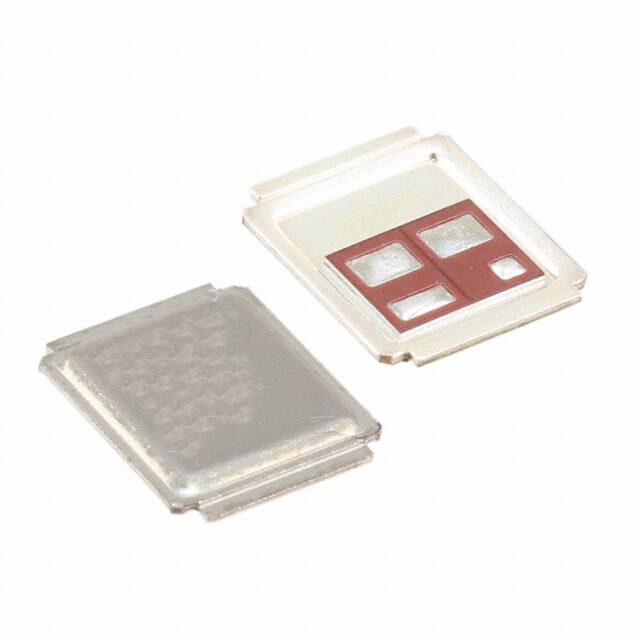

IRL6283MTRPBF

Teknik Özellikler

Fall Time Typ

192 ns

Threshold Voltage

800mV

Gate To Source Voltage Vgs

12V

Çalışma Sıcaklığı

-40°C~150°C TJ

Drive Voltage Max Rds On Min Rds On

2.5V 4.5V

ECCN Kodu

EAR99

Fet Type

N-Channel

Turn Off Delay Time

116 ns

Rds On Max Id Vgs

0.75m Ω @ 50A, 10V

Input Capacitance Ciss Max Vds

8292pF @ 10V

Reach Svhc

No SVHC

Continuous Drain Current Id

211A

Drain To Source Voltage Vdss

20V

Number Of Channels

1

Radyasyon Dayanımı

No

Gate Charge Qg Max Vgs

158nC @ 4.5V

Element Configuration

Single

Ambalaj

Tape & Reel (TR)

Current Continuous Drain Id25

38A Ta 211A Tc

Vgsth Max Id

1.1V @ 100μA

Parça Durumu

Obsolete

Power Dissipation Max

2.1W Ta 63W Tc

Montaj

Surface Mount

Seri

HEXFET®, StrongIRFET™

Yayın Yılı

2013

Nem Hassasiyeti (MSL)

1 (Unlimited)

Turn On Delay Time

23 ns

Power Dissipation

2.1W

Montaj Tipi

Surface Mount

Vgs Max

±12V

Rise Time

160ns

Kılıf / Paket

DirectFET™ Isometric MD

Kurşunsuz

Lead Free

Pin Sayısı

8

RoHS Durumu

RoHS Compliant
