IRFHM4234TRPBF

Teknik Özellikler

Terminal Pozisyonu

DUAL

Number Of Elements

1

Kurşunsuz

Lead Free

Parça Durumu

Obsolete

Ambalaj

Tape & Reel (TR)

Transistor Application

SWITCHING

Fet Type

N-Channel

Contact Plating

Copper, Silver, Tin

Avalanche Energy Rating Eas

39 mJ

Vgs Max

±20V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Yayın Yılı

2013

Drain Currentmax Abs Id

63A

Turn Off Delay Time

8 ns

Direnç

4.4MOhm

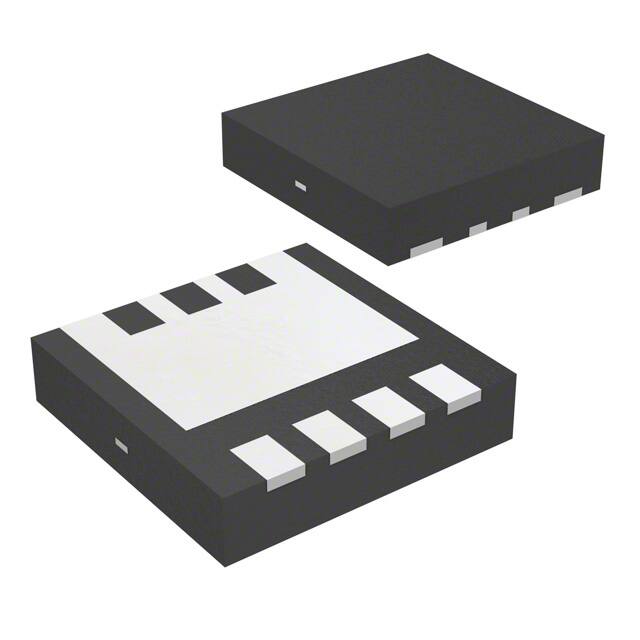

Kılıf / Paket

8-TQFN Exposed Pad

Vgsth Max Id

2.1V @ 25μA

Uzunluk

3.3mm

Turn On Delay Time

7.8 ns

Gate Charge Qg Max Vgs

17nC @ 10V

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Case Connection

DRAIN

Input Capacitance Ciss Max Vds

1011pF @ 13V

Pulsed Drain Currentmax Idm

270A

Reach Svhc

No SVHC

Montaj

Surface Mount

Power Dissipation Max

2.8W Ta 28W Tc

Terminal Sayısı

5

Gate To Source Voltage Vgs

20V

Rise Time

30ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Continuous Drain Current Id

20A

Yükseklik

900μm

Fall Time Typ

5.3 ns

Element Configuration

Single

Threshold Voltage

1.6V

Transistor Element Material

SILICON

Seri

FASTIRFET™, HEXFET®

Genişlik

3.3mm
