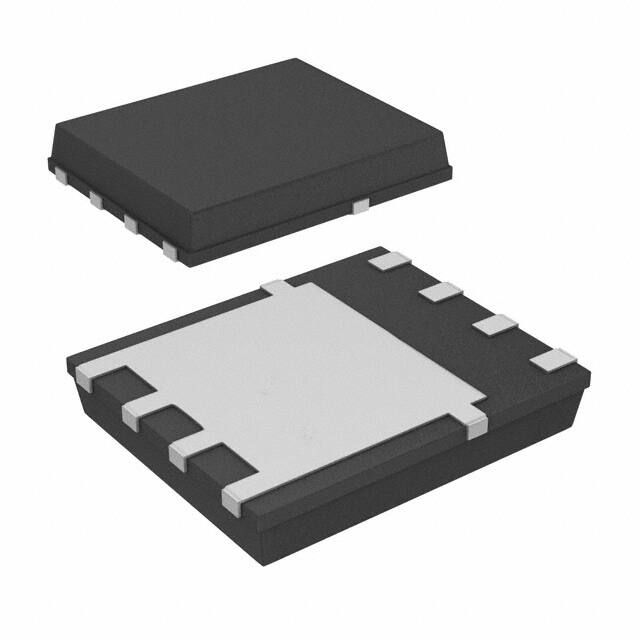

IRFH8321TRPBF

Teknik Özellikler

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Vgs Max

±20V

Continuous Drain Current Id

21A

Rise Time

20ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Gate To Source Voltage Vgs

20V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Montaj

Surface Mount

Fet Type

N-Channel

Number Of Channels

1

Power Dissipation Max

3.4W Ta 54W Tc

Element Configuration

Single

Turn Off Delay Time

12 ns

Montaj Tipi

Surface Mount

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fall Time Typ

6.8 ns

Fabrika Tedarik Süresi

16 Weeks

Input Capacitance Ciss Max Vds

2600pF @ 10V

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Ambalaj

Tape & Reel (TR)

Parça Durumu

Obsolete

Kurşunsuz

Lead Free

Turn On Delay Time

14 ns

Pin Sayısı

8

Gate Charge Qg Max Vgs

59nC @ 10V

ECCN Kodu

EAR99

Vgsth Max Id

2V @ 50μA

Drain To Source Breakdown Voltage

30V

Rds On Max Id Vgs

4.9m Ω @ 20A, 10V

RoHS Durumu

ROHS3 Compliant

Current Continuous Drain Id25

21A Ta 83A Tc

Kılıf / Paket

8-TQFN Exposed Pad

Power Dissipation

3.4W

Seri

HEXFET®
