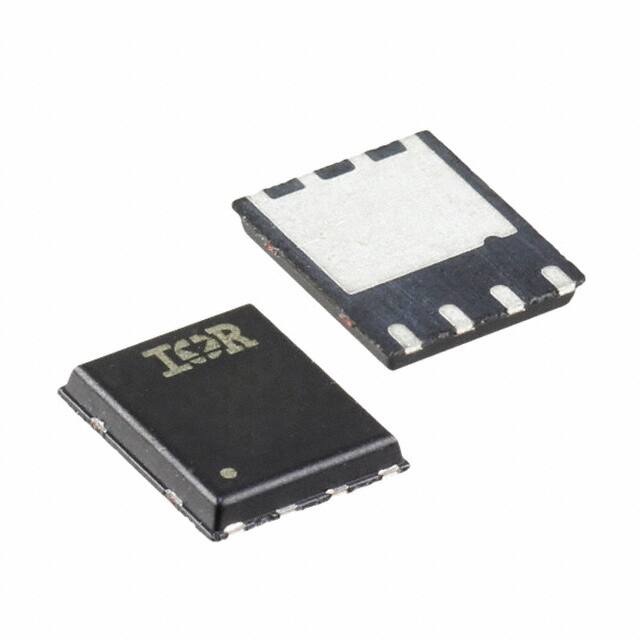

IRFH7085TRPBF

Teknik Özellikler

Turn On Delay Time

13 ns

Gate Charge Qg Max Vgs

165nC @ 10V

Vgsth Max Id

3.7V @ 150μA

Uzunluk

6.15mm

Kılıf / Paket

8-PowerVDFN

Jesd30 Code

R-PDSO-N5

Turn Off Delay Time

63 ns

Yayın Yılı

2008

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Avalanche Energy Rating Eas

554 mJ

Vgs Max

±20V

Fet Type

N-Channel

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Transistor Application

SWITCHING

Number Of Elements

1

Kurşunsuz

Lead Free

Terminal Pozisyonu

DUAL

Rds On Max Id Vgs

3.2m Ω @ 75A, 10V

Max Junction Temperature Tj

150°C

Drain To Source Breakdown Voltage

60V

RoHS Durumu

ROHS3 Compliant

Current Continuous Drain Id25

100A Tc

Pin Sayısı

8

ECCN Kodu

EAR99

Terminal Formu

NO LEAD

Operating Mode

ENHANCEMENT MODE

Seri

StrongIRFET™

Genişlik

5.15mm

Power Dissipation

156W

Transistor Element Material

SILICON

Threshold Voltage

3.7V

Element Configuration

Single

Fall Time Typ

23 ns

Drainsource On Resistancemax

0.0032Ohm

Rise Time

25ns

Çalışma Sıcaklığı

-55°C~150°C TJ

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Continuous Drain Current Id

23A
