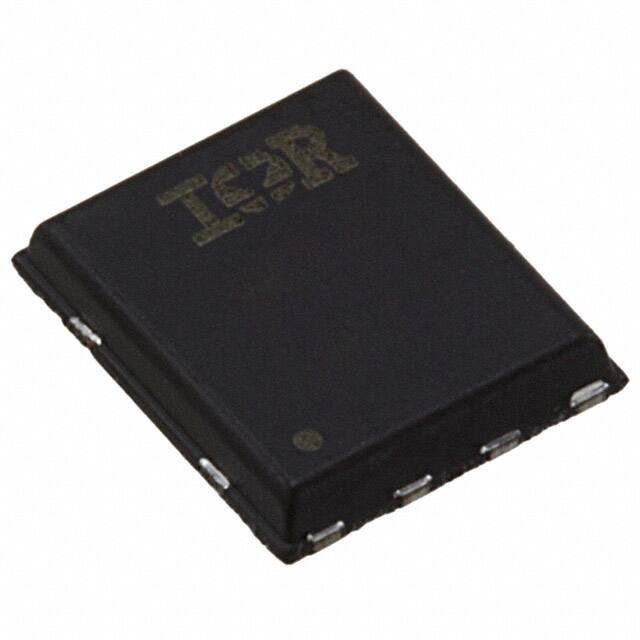

IRFH4201TRPBF

Teknik Özellikler

Power Dissipation Max

3.5W Ta 156W Tc

Fet Type

N-Channel

Terminal Sayısı

5

Montaj

Surface Mount

Gate To Source Voltage Vgs

20V

Avalanche Energy Rating Eas

478 mJ

Çalışma Sıcaklığı

-55°C~150°C TJ

Rise Time

43ns

Contact Plating

Copper, Silver, Tin

Continuous Drain Current Id

49A

Vgs Max

±20V

Yükseklik

900μm

Fall Time Typ

19 ns

Montaj Tipi

Surface Mount

Yayın Yılı

2013

Nem Hassasiyeti (MSL)

1 (Unlimited)

Turn Off Delay Time

24 ns

Element Configuration

Single

Case Connection

DRAIN

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Terminal Pozisyonu

DUAL

Input Capacitance Ciss Max Vds

6100pF @ 13V

Number Of Elements

1

Pulsed Drain Currentmax Idm

400A

Kurşunsuz

Lead Free

Reach Svhc

No SVHC

Ambalaj

Tape & Reel (TR)

Parça Durumu

Obsolete

Transistor Application

SWITCHING

Vgsth Max Id

2.1V @ 150μA

ECCN Kodu

EAR99

Drain To Source Voltage Vdss

25V

Operating Mode

ENHANCEMENT MODE

Uzunluk

6mm

Gate Charge Qg Max Vgs

94nC @ 10V

Turn On Delay Time

20 ns

Pin Sayısı

5

Current Continuous Drain Id25

49A Ta

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No
