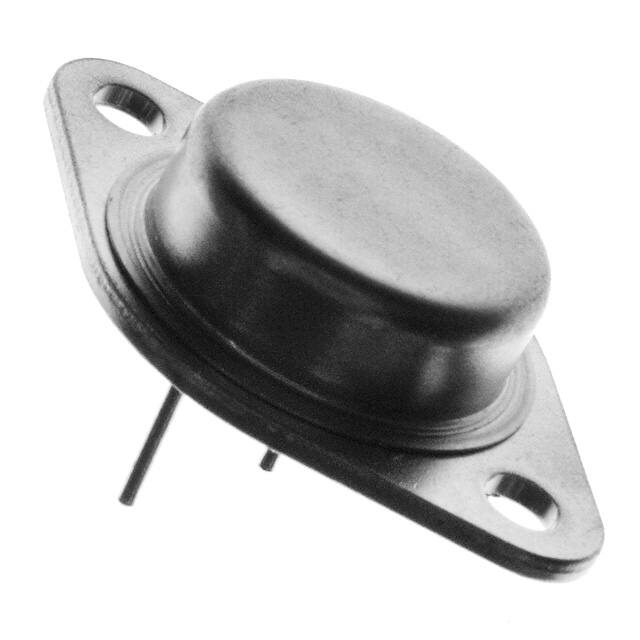

IRF450

Teknik Özellikler

Drainsource On Resistancemax

0.5Ohm

Reach Svhc

No SVHC

Operating Mode

ENHANCEMENT MODE

Drive Voltage Max Rds On Min Rds On

10V

Gate To Source Voltage Vgs

20V

Gate Charge Qg Max Vgs

120nC @ 10V

Turn On Delay Time

35 ns

Pulsed Drain Currentmax Idm

48A

Kılıf / Paket

TO-204AA, TO-3

Montaj

Through Hole

Vgsth Max Id

4V @ 250μA

Avalanche Energy Rating Eas

8 mJ

Montaj Tipi

Through Hole

Current Continuous Drain Id25

12A Tc

Pin Sayısı

2

Drain To Source Breakdown Voltage

500V

Seri

HEXFET®

Power Dissipation

150W

Terminal Pozisyonu

BOTTOM

Ambalaj

Tube

Power Dissipation Max

150W Tc

Kurşunsuz

Contains Lead

RoHS Durumu

Non-RoHS Compliant

Parça Durumu

Obsolete

Rise Time

190ns

Radyasyon Dayanımı

No

Voltage Rated Dc

500V

Akım Değeri

12A

Weight

10g

Rds On Max Id Vgs

500m Ω @ 12A, 10V

Fet Type

N-Channel

Vgs Max

±20V

Turn Off Delay Time

170 ns

Continuous Drain Current Id

12A

Yayın Yılı

2001

Fall Time Typ

130 ns

Terminal Kaplaması

Tin/Lead (Sn/Pb)

Case Connection

DRAIN

Terminal Formu

PIN/PEG

Number Of Elements

1
