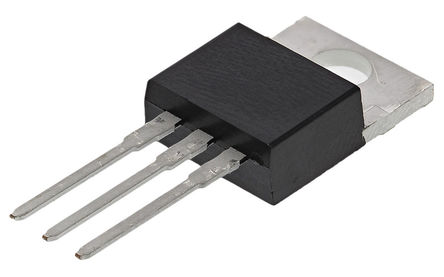

IPP50R250CPXKSA1

Teknik Özellikler

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Genişlik

4.57mm

Transistor Application

SWITCHING

Gate To Source Voltage Vgs

20V

ECCN Kodu

EAR99

Fall Time Typ

11 ns

Drain To Source Breakdown Voltage

500V

Uzunluk

10.36mm

Terminal Sayısı

3

Turn Off Delay Time

80 ns

Maks. Çalışma Sıcaklığı

150°C

Continuous Drain Current Id

13A

JESD-609 Kodu

e3

Drain To Source Voltage Vdss

500V

Terminal Kaplaması

Tin (Sn)

Operating Mode

ENHANCEMENT MODE

Rds On Max

250 mΩ

Element Configuration

Single

Kurşunsuz Kodu

yes

Drain To Source Resistance

250mOhm

Qualification Status

Not Qualified

Polaritychannel Type

N-CHANNEL

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Montaj

Through Hole

Parça Durumu

Not For New Designs

Yayın Yılı

2008

Nem Hassasiyeti (MSL)

1 (Unlimited)

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Turn On Delay Time

35 ns

Power Dissipation

114W

Input Capacitance

1.42nF

Max Power Dissipation

114W

Rise Time

14ns

Kılıf / Paket

TO-220

Case Connection

ISOLATED

Max Dual Supply Voltage

500V

Kurşunsuz

Lead Free

Pin Sayısı

3

Pin Sayısı

3

RoHS Durumu

ROHS3 Compliant
