IPD60R400CEAUMA1

Teknik Özellikler

Jesd30 Code

R-PSSO-G2

Montaj

Surface Mount

Vgsth Max Id

3.5V @ 300μA

Power Dissipation Max

112W Tc

Max Dual Supply Voltage

600V

Halogen Free

Halogen Free

Terminal Sayısı

2

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-40°C~150°C TJ

Terminal Kaplaması

Tin (Sn)

Number Of Elements

1

Fet Type

N-Channel

Seri

CoolMOS™ CE

Configuration

SINGLE WITH BUILT-IN DIODE

Montaj Tipi

Surface Mount

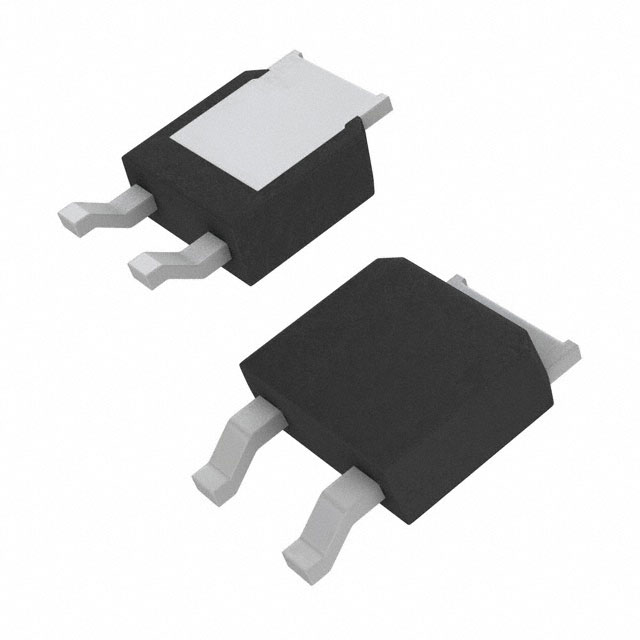

Kılıf / Paket

TO-252-3, DPak (2 Leads + Tab), SC-63

Case Connection

DRAIN

Kurşunsuz Kodu

yes

Avalanche Energy Rating Eas

210 mJ

JESD-609 Kodu

e3

Yayın Yılı

2008

Current Continuous Drain Id25

14.7A Tc

Kurşunsuz

Contains Lead

REACH Uyumluluk Kodu

not_compliant

Operating Mode

ENHANCEMENT MODE

RoHS Durumu

ROHS3 Compliant

Transistor Application

SWITCHING

Rds On Max Id Vgs

400m Ω @ 3.8A, 10V

Pulsed Drain Currentmax Idm

30A

Drainsource On Resistancemax

0.4Ohm

ECCN Kodu

EAR99

Input Capacitance Ciss Max Vds

700pF @ 100V

Fabrika Tedarik Süresi

18 Weeks

Gate Charge Qg Max Vgs

32nC @ 10V

Drive Voltage Max Rds On Min Rds On

10V

Terminal Pozisyonu

SINGLE

Transistor Element Material

SILICON

Terminal Formu

GULL WING

Parça Durumu

Active

Vgs Max

±20V
