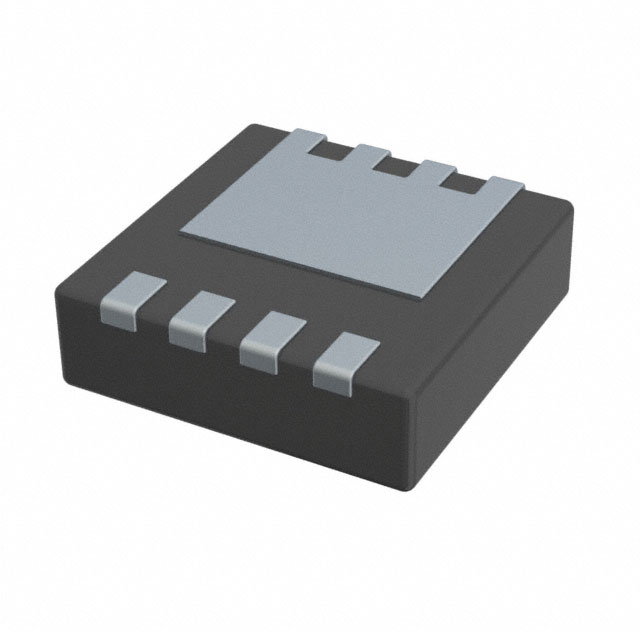

BSZ340N08NS3GATMA1

Teknik Özellikler

Continuous Drain Current Id

6A

Pulsed Drain Currentmax Idm

92A

Input Capacitance Ciss Max Vds

630pF @ 40V

Jesd30 Code

S-PDSO-N5

Configuration

SINGLE WITH BUILT-IN DIODE

Transistor Element Material

SILICON

Avalanche Energy Rating Eas

20 mJ

RoHS Durumu

ROHS3 Compliant

Halogen Free

Halogen Free

Transistor Application

SWITCHING

Terminal Formu

NO LEAD

Nem Hassasiyeti (MSL)

1 (Unlimited)

Case Connection

DRAIN

ECCN Kodu

EAR99

Drainsource On Resistancemax

0.034Ohm

Ambalaj

Tape & Reel (TR)

REACH Uyumluluk Kodu

not_compliant

Gate Charge Qg Max Vgs

9.1nC @ 10V

Kılıf / Paket

8-PowerTDFN

Vgs Max

±20V

Kurşunsuz Kodu

no

Rds On Max Id Vgs

34m Ω @ 12A, 10V

Fet Type

N-Channel

Power Dissipation

2.1W

Rise Time

3ns

Current Continuous Drain Id25

6A Ta 23A Tc

Gate To Source Voltage Vgs

20V

Contact Plating

Tin

Drive Voltage Max Rds On Min Rds On

6V 10V

Pin Sayısı

8

Max Dual Supply Voltage

80V

Fabrika Tedarik Süresi

18 Weeks

Terminal Sayısı

5

Qualification Status

Not Qualified

Terminal Pozisyonu

DUAL

Kurşunsuz

Contains Lead

Yayın Yılı

2008

Drain Currentmax Abs Id

23A

Montaj

Surface Mount

Number Of Elements

1
