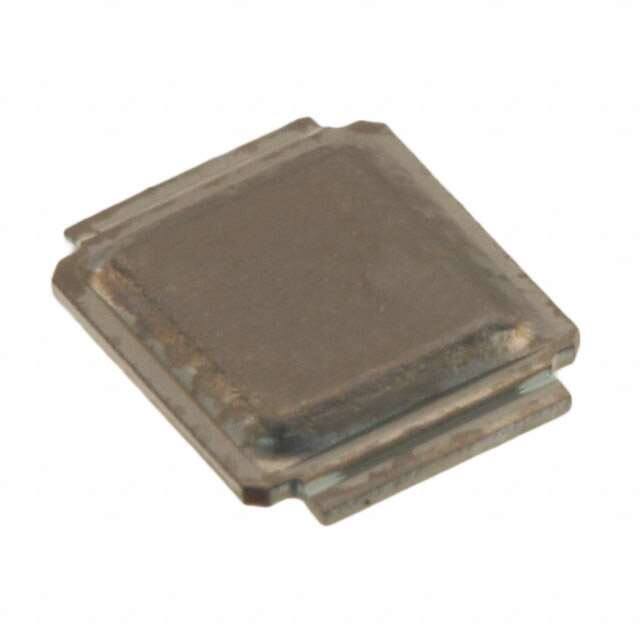

BSB012NE2LXIXUMA1

Teknik Özellikler

Gate To Source Voltage Vgs

20V

Montaj Tipi

Surface Mount

Input Capacitance Ciss Max Vds

5852pF @ 12V

ECCN Kodu

EAR99

Gate Charge Qg Max Vgs

82nC @ 10V

Turn Off Delay Time

34 ns

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Çalışma Sıcaklığı

-40°C~150°C TJ

Fall Time Typ

4.6 ns

Element Configuration

Single

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Rise Time

6ns

Vgsth Max Id

2V @ 250μA

Drain To Source Breakdown Voltage

25V

Parça Durumu

Active

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

26 Weeks

Vgs Max

±20V

Pin Sayısı

3

Fet Type

N-Channel

Nem Hassasiyeti (MSL)

3 (168 Hours)

Power Dissipation Max

2.8W Ta 57W Tc

Current Continuous Drain Id25

170A Tc

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Rds On Max Id Vgs

1.2m Ω @ 30A, 10V

Halogen Free

Halogen Free

Ambalaj

Tape & Reel (TR)

Contact Plating

Nickel

RoHS Durumu

ROHS3 Compliant

Montaj

Surface Mount

Yayın Yılı

2013

Kılıf / Paket

3-WDSON

Seri

OptiMOS™

JESD-609 Kodu

e4

Continuous Drain Current Id

170A
