AUIRLS4030-7P

Teknik Özellikler

Transistor Element Material

SILICON

Terminal Formu

GULL WING

JESD-609 Kodu

e3

Yayın Yılı

2009

Kılıf / Paket

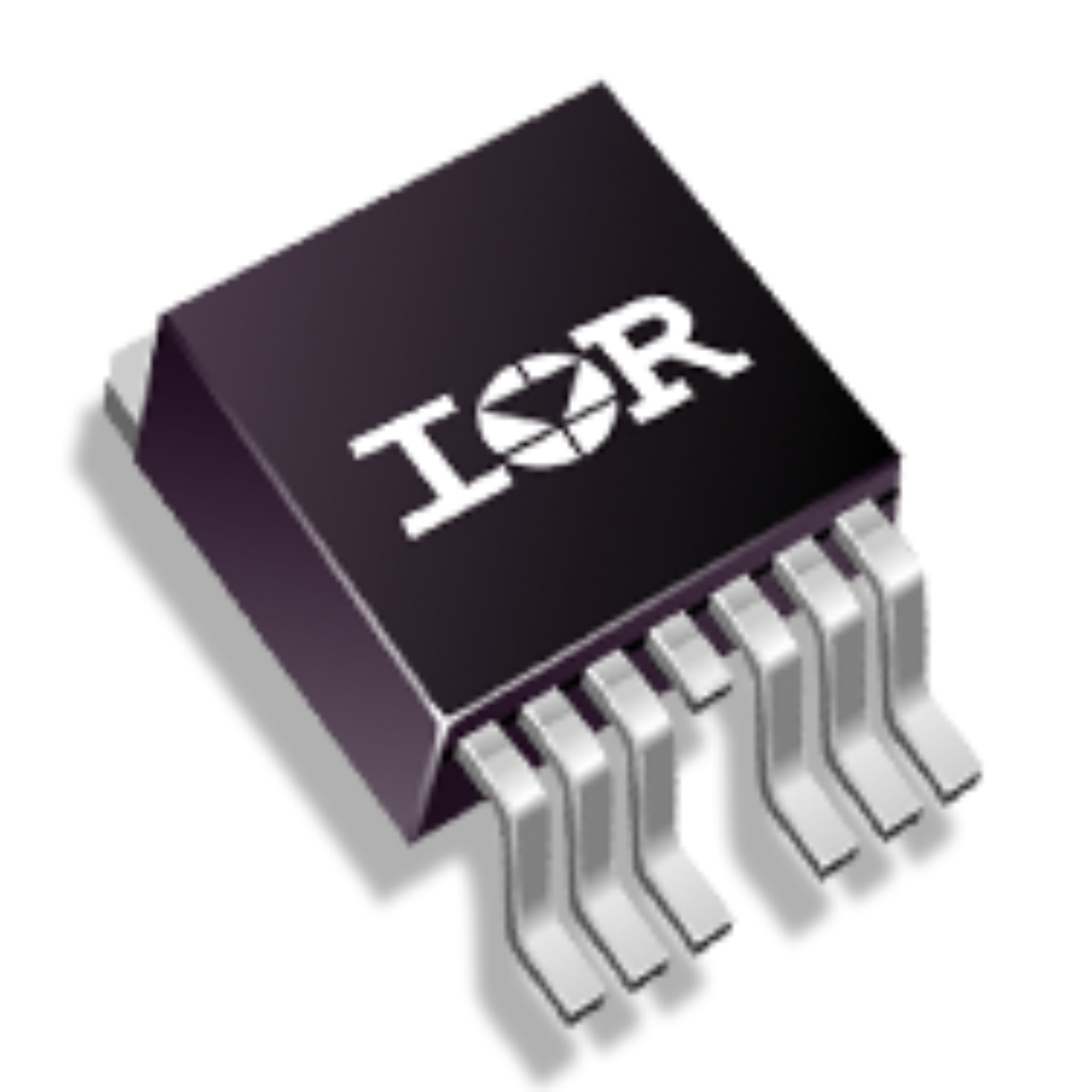

TO-263-7, D2Pak (6 Leads + Tab)

Parça Durumu

Discontinued

Montaj Tipi

Surface Mount

Number Of Elements

1

Power Dissipation

370W

Vgsth Max Id

2.5V @ 250μA

Jesd30 Code

R-PSSO-G6

Pin Sayısı

7

Input Capacitance Ciss Max Vds

11490pF @ 50V

Kurşunsuz

Lead Free

Current Continuous Drain Id25

190A Tc

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Fet Type

N-Channel

Turn On Delay Time

53 ns

Gate To Source Voltage Vgs

16V

Fall Time Typ

87 ns

ECCN Kodu

EAR99

Additional Feature

AVALANCHE RATED, ULTRA-LOW RESISTANCE, HIGH RELIABILITY

Gate Charge Qg Max Vgs

140nC @ 4.5V

Case Connection

DRAIN

Tepe Reflow Sıcaklığı (°C)

260

Rds On Max Id Vgs

3.9m Ω @ 110A, 10V

RoHS Durumu

ROHS3 Compliant

Genişlik

9.65mm

Çalışma Sıcaklığı

-55°C~175°C TJ

Continuous Drain Current Id

190A

Power Dissipation Max

370W Tc

Transistor Application

SWITCHING

Radyasyon Dayanımı

No

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Contact Plating

Tin

Avalanche Energy Rating Eas

320 mJ

Drainsource On Resistancemax

0.0039Ohm

Ambalaj

Tube

Montaj

Surface Mount
