AUIRLS3034-7TRL

Teknik Özellikler

Vgs Max

±20V

Montaj

Surface Mount

Ambalaj

Tape & Reel (TR)

Drain Currentmax Abs Id

380A

Avalanche Energy Rating Eas

250 mJ

Contact Plating

Tin

Jedec95 Code

TO-263CB

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Radyasyon Dayanımı

No

Transistor Application

SWITCHING

Power Dissipation Max

380W Tc

Continuous Drain Current Id

240A

Çalışma Sıcaklığı

-55°C~175°C TJ

Genişlik

9.65mm

RoHS Durumu

ROHS3 Compliant

Rds On Max Id Vgs

1.4m Ω @ 200A, 10V

Fabrika Tedarik Süresi

16 Weeks

Rise Time

590ns

Drain To Source Breakdown Voltage

40V

Tepe Reflow Süresi (maks. sn)

30

Uzunluk

10.67mm

Turn Off Delay Time

94 ns

Operating Mode

ENHANCEMENT MODE

Configuration

SINGLE WITH BUILT-IN DIODE

Yükseklik

4.83mm

Terminal Pozisyonu

SINGLE

Seri

HEXFET®

Terminal Sayısı

6

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Continuous Drain Id25

240A Tc

Input Capacitance Ciss Max Vds

10990pF @ 40V

Pin Sayısı

7

Jesd30 Code

R-PSSO-G6

Vgsth Max Id

2.5V @ 250μA

Power Dissipation

380W

Number Of Elements

1

Montaj Tipi

Surface Mount

Parça Durumu

Active

Yayın Yılı

2006

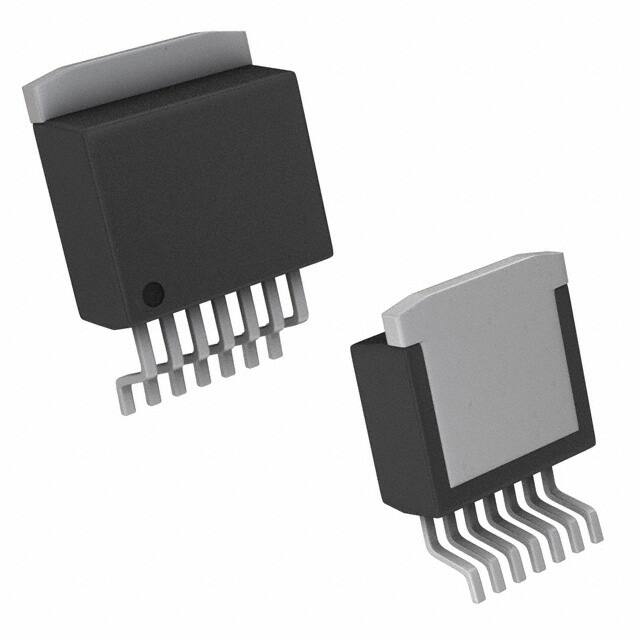

Kılıf / Paket

TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
