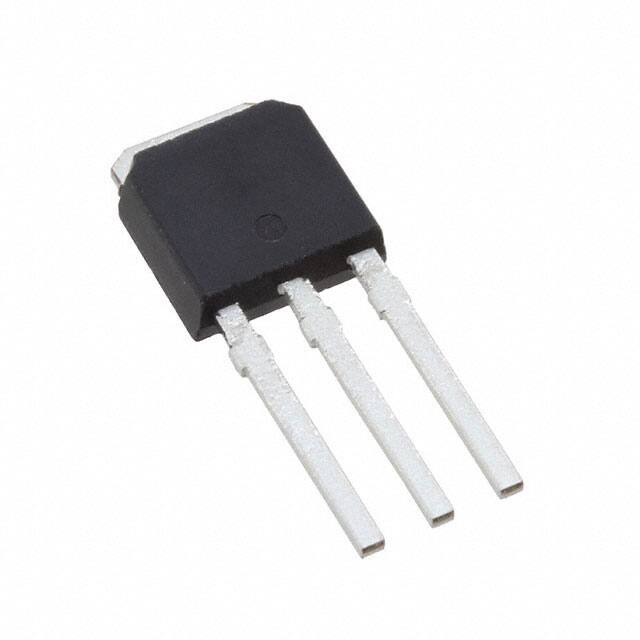

AUIRFU8405

Teknik Özellikler

Turn On Delay Time

12 ns

Yükseklik

6.22mm

Fet Type

N-Channel

Uzunluk

6.73mm

Turn Off Delay Time

51 ns

Seri

HEXFET®

Reach Svhc

No SVHC

Drain To Source Breakdown Voltage

40V

Fabrika Tedarik Süresi

26 Weeks

Threshold Voltage

3V

Rise Time

80ns

Gate To Source Voltage Vgs

20V

ECCN Kodu

EAR99

Fall Time Typ

51 ns

Gate Charge Qg Max Vgs

155nC @ 10V

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~175°C TJ

Power Dissipation Max

163W Tc

Continuous Drain Current Id

100A

Rds On Max Id Vgs

1.98m Ω @ 90A, 10V

Parça Durumu

Active

Genişlik

2.39mm

Element Configuration

Single

Kılıf / Paket

TO-251-3 Short Leads, IPak, TO-251AA

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Number Of Channels

1

Kurşunsuz

Lead Free

Input Capacitance Ciss Max Vds

5171pF @ 25V

Pin Sayısı

3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vgs Max

±20V

Montaj

Surface Mount, Through Hole

Ambalaj

Tube

Current Continuous Drain Id25

100A Tc

Nominal Vgs

3 V

Drive Voltage Max Rds On Min Rds On

10V

Radyasyon Dayanımı

No

Vgsth Max Id

3.9V @ 100μA

Power Dissipation

163W
