AUIRFU3607

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vgs Max

±20V

Montaj

Through Hole

Ambalaj

Tube

Current Continuous Drain Id25

56A Tc

Kurşunsuz

Lead Free

Number Of Channels

1

Drainsource On Resistancemax

0.009Ohm

Input Capacitance Ciss Max Vds

3070pF @ 50V

Pin Sayısı

3

Drain Currentmax Abs Id

56A

Vgsth Max Id

4V @ 100μA

Power Dissipation

140W

Drive Voltage Max Rds On Min Rds On

10V

Radyasyon Dayanımı

No

Transistor Application

SWITCHING

Power Dissipation Max

140W Tc

Continuous Drain Current Id

80A

Number Of Elements

1

Terminal Kaplaması

Matte Tin (Sn) - with Nickel (Ni) barrier

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~175°C TJ

Parça Durumu

Obsolete

Element Configuration

Single

Yayın Yılı

2015

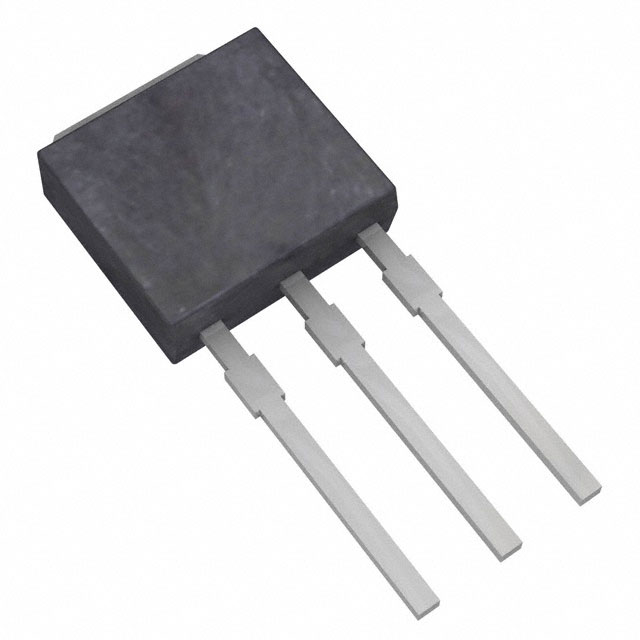

Kılıf / Paket

TO-251-3 Short Leads, IPak, TO-251AA

RoHS Durumu

RoHS Compliant

JESD-609 Kodu

e3

Rds On Max Id Vgs

9m Ω @ 46A, 10V

Transistor Element Material

SILICON

Fabrika Tedarik Süresi

11 Weeks

Rise Time

110ns

Tepe Reflow Sıcaklığı (°C)

260

Case Connection

DRAIN

Gate Charge Qg Max Vgs

84nC @ 10V

Tepe Reflow Süresi (maks. sn)

30

Additional Feature

HIGH RELIABILITY, ULTRA-LOW RESISTANCE

Gate To Source Voltage Vgs

20V

ECCN Kodu

EAR99

Fall Time Typ

96 ns
