AUIRFS3107-7P

Teknik Özellikler

Current Continuous Drain Id25

240A Tc

Rise Time

80ns

Ambalaj

Tube

Element Configuration

Single

Number Of Elements

1

Pin Sayısı

7

Transistor Application

SWITCHING

JESD-609 Kodu

e3

Drain To Source Breakdown Voltage

75V

Turn On Delay Time

17 ns

Parça Durumu

Discontinued

Radyasyon Dayanımı

No

Operating Mode

ENHANCEMENT MODE

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount

Continuous Drain Current Id

240A

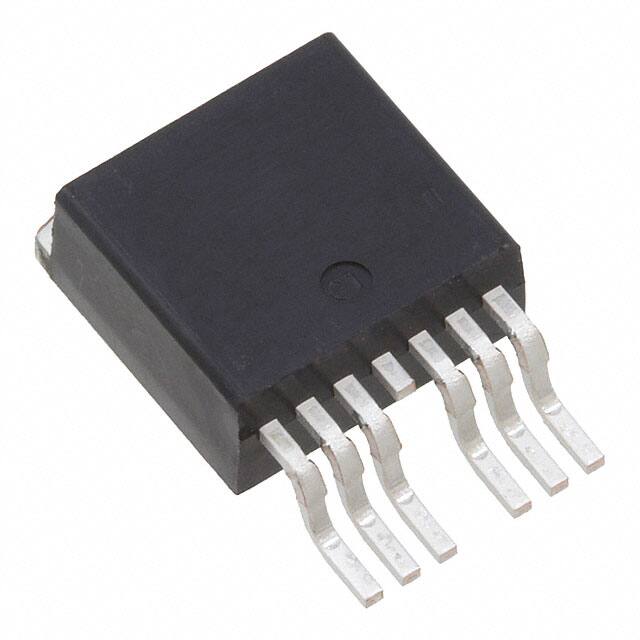

Kılıf / Paket

TO-263-7, D2Pak (6 Leads + Tab)

Fall Time Typ

64 ns

Terminal Sayısı

6

Çalışma Sıcaklığı

-55°C~175°C TJ

Avalanche Energy Rating Eas

320 mJ

Rds On Max Id Vgs

2.6m Ω @ 160A, 10V

Montaj

Surface Mount

Contact Plating

Tin

Drive Voltage Max Rds On Min Rds On

10V

Genişlik

9.65mm

Gate Charge Qg Max Vgs

240nC @ 10V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vgsth Max Id

4V @ 250μA

RoHS Durumu

ROHS3 Compliant

Case Connection

DRAIN

Transistor Element Material

SILICON

Power Dissipation

370W

Input Capacitance Ciss Max Vds

9200pF @ 50V

Turn Off Delay Time

100 ns

Jesd30 Code

R-PSSO-G6

Seri

HEXFET®

Jedec95 Code

TO-263CB

Power Dissipation Max

370W Tc

Gate To Source Voltage Vgs

20V
