AUIRFP4310Z

Teknik Özellikler

Ambalaj

Tube

Current Continuous Drain Id25

128A Tc

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Parça Durumu

Obsolete

Number Of Elements

1

Transistor Application

SWITCHING

Continuous Drain Current Id

128A

ECCN Kodu

EAR99

Operating Mode

ENHANCEMENT MODE

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~175°C TJ

Rds On Max Id Vgs

6m Ω @ 77A, 10V

Avalanche Energy Rating Eas

355 mJ

Pulsed Drain Currentmax Idm

480A

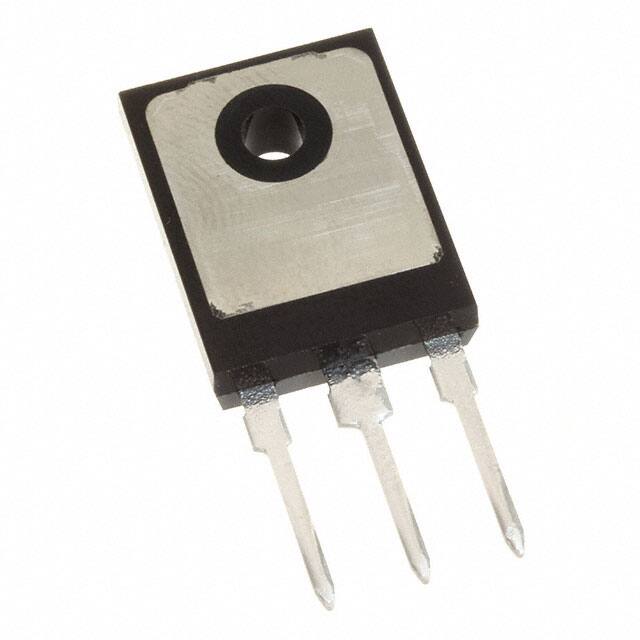

Kılıf / Paket

TO-247-3

Terminal Sayısı

3

Fabrika Tedarik Süresi

19 Weeks

Gate Charge Qg Max Vgs

188nC @ 10V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vgsth Max Id

4V @ 150μA

Drive Voltage Max Rds On Min Rds On

10V

Montaj

Through Hole

Transistor Element Material

SILICON

Input Capacitance Ciss Max Vds

7120pF @ 50V

RoHS Durumu

RoHS Compliant

Case Connection

DRAIN

Jesd30 Code

R-PSFM-T3

Configuration

SINGLE WITH BUILT-IN DIODE

Ds Breakdown Voltagemin

100V

Yayın Yılı

2015

Drain To Source Voltage Vdss

100V

Vgs Max

±20V

Terminal Pozisyonu

SINGLE

Fet Type

N-Channel

Additional Feature

ULTRA LOW RESISTANCE

Drainsource On Resistancemax

0.006Ohm

Jedec95 Code

TO-247AC

Seri

Automotive, AEC-Q101, HEXFET®

Drain Currentmax Abs Id

120A
