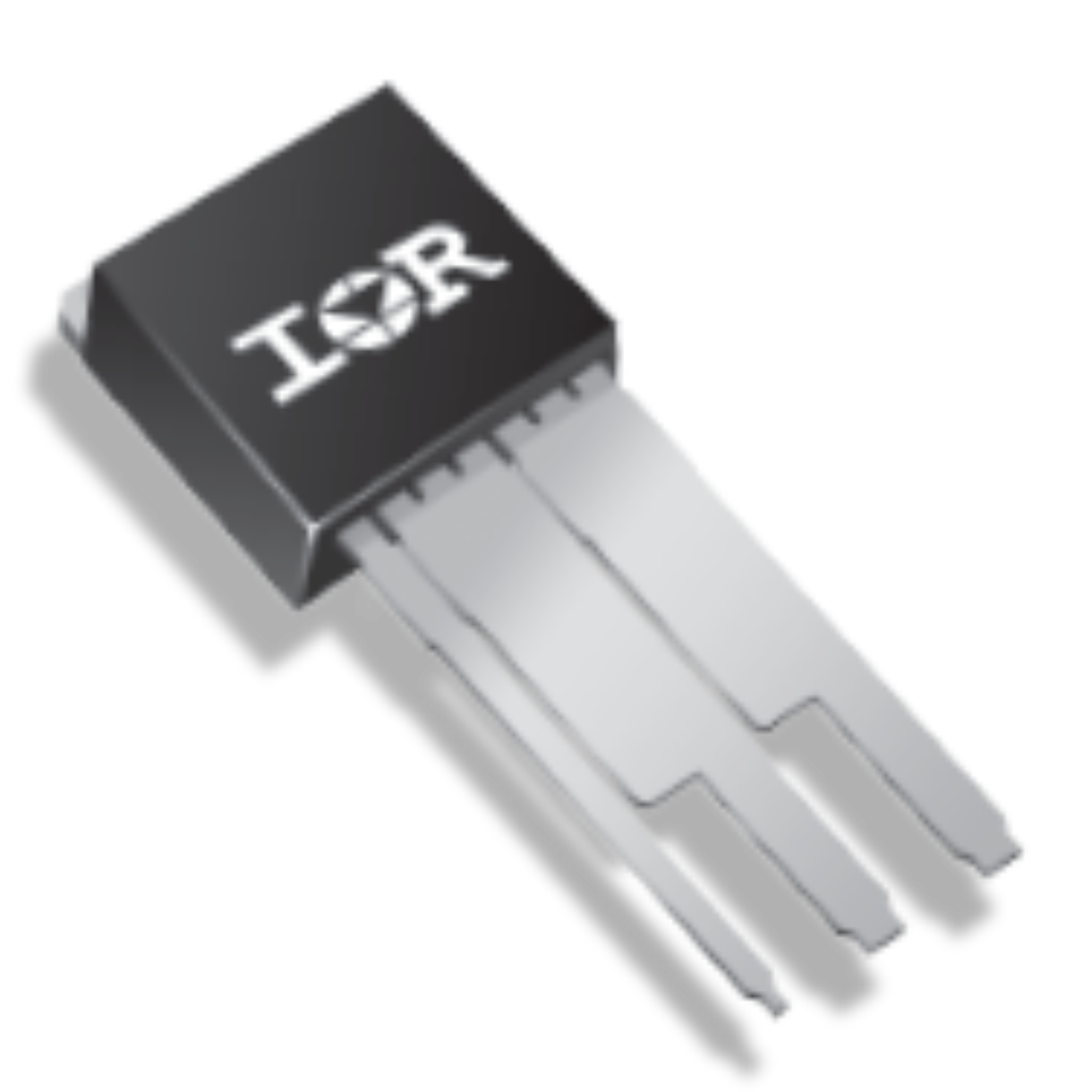

AUIRF3004WL

Teknik Özellikler

Terminal Sayısı

3

Fall Time Typ

130 ns

Kılıf / Paket

TO-262-3 Wide Leads

Rds On Max Id Vgs

1.4m Ω @ 195A, 10V

Avalanche Energy Rating Eas

470 mJ

Çalışma Sıcaklığı

-55°C~175°C TJ

Montaj Tipi

Surface Mount

ECCN Kodu

EAR99

Radyasyon Dayanımı

No

Threshold Voltage

2V

Operating Mode

ENHANCEMENT MODE

Continuous Drain Current Id

240A

JESD-609 Kodu

e3

Transistor Application

SWITCHING

Pin Sayısı

3

Number Of Elements

1

Parça Durumu

Active

Turn On Delay Time

19 ns

Drain To Source Breakdown Voltage

40V

Current Continuous Drain Id25

240A Tc

Element Configuration

Single

Ambalaj

Tube

Rise Time

220ns

Power Dissipation Max

375W Tc

Gate To Source Voltage Vgs

20V

Jedec95 Code

TO-262AA

Seri

HEXFET®

Additional Feature

AVALANCHE RATED, HIGH RELIABILITY, ULTRA-LOW RESISTANCE

Yükseklik

11.3mm

Fet Type

N-Channel

Uzunluk

10.67mm

Yayın Yılı

2011

Vgs Max

±20V

Turn Off Delay Time

90 ns

RoHS Durumu

ROHS3 Compliant

Input Capacitance Ciss Max Vds

9450pF @ 32V

Power Dissipation

375W

Transistor Element Material

SILICON

Nominal Vgs

2 V

Reach Svhc

No SVHC
