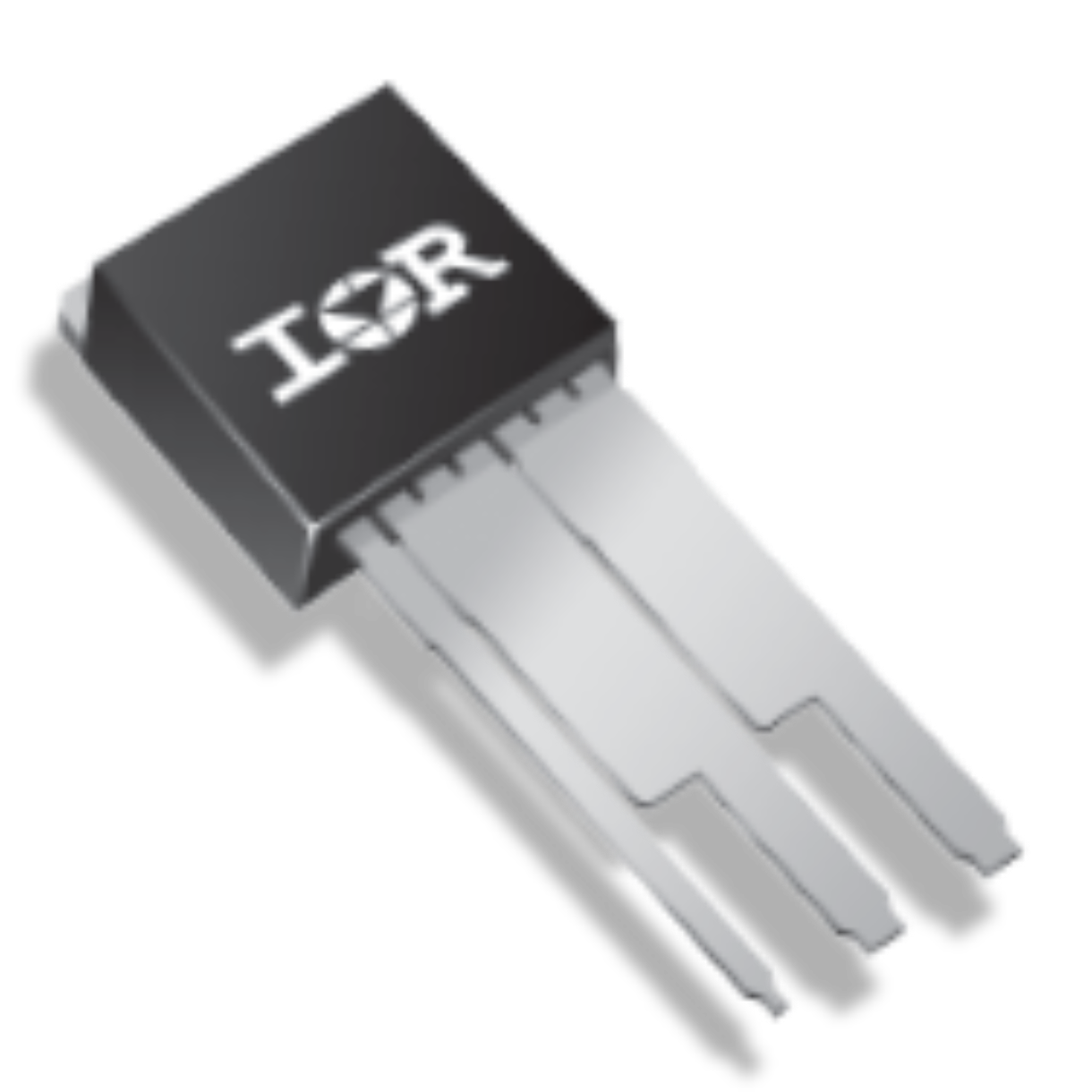

AUIRF2804WL

Teknik Özellikler

Input Capacitance Ciss Max Vds

7978pF @ 25V

Power Dissipation

300W

RoHS Durumu

ROHS3 Compliant

Genişlik

4.83mm

Drive Voltage Max Rds On Min Rds On

10V

Fabrika Tedarik Süresi

16 Weeks

Gate Charge Qg Max Vgs

225nC @ 10V

Vgsth Max Id

4V @ 250μA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Fet Type

N-Channel

Yükseklik

9.65mm

Vgs Max

±20V

Yayın Yılı

2010

Uzunluk

10.67mm

Power Dissipation Max

300W Tc

Gate To Source Voltage Vgs

20V

Drain Currentmax Abs Id

240A

Seri

HEXFET®

Turn Off Delay Time

71 ns

Parça Durumu

Active

Turn On Delay Time

19 ns

Drain To Source Breakdown Voltage

40V

Number Of Elements

1

Pin Sayısı

3

Rise Time

241ns

Ambalaj

Tube

Element Configuration

Single

Current Continuous Drain Id25

240A Tc

Rds On Max Id Vgs

1.8m Ω @ 187A, 10V

Çalışma Sıcaklığı

-55°C~175°C TJ

Fall Time Typ

100 ns

Kılıf / Paket

TO-262-3 Wide Leads

Continuous Drain Current Id

295A

Montaj Tipi

Through Hole

Radyasyon Dayanımı

No

ECCN Kodu

EAR99
