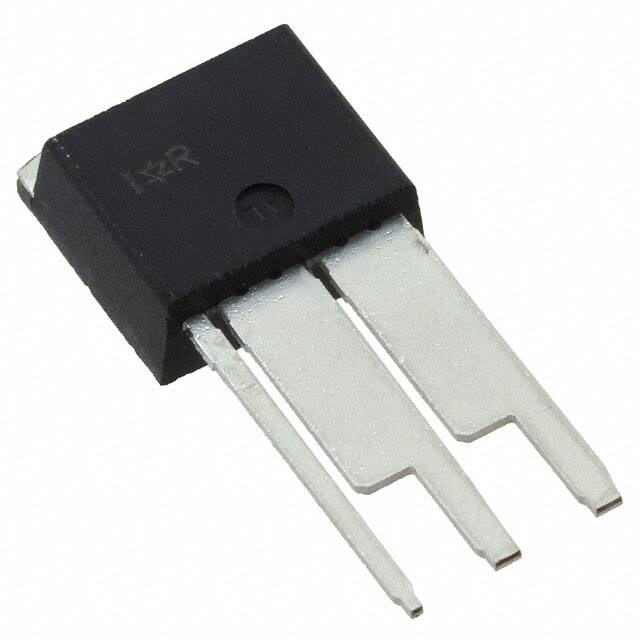

AUIRF1324WL

Teknik Özellikler

Turn On Delay Time

18 ns

Parça Durumu

Active

Drain To Source Breakdown Voltage

24V

Transistor Application

SWITCHING

JESD-609 Kodu

e3

Number Of Elements

1

Pin Sayısı

3

Rise Time

200ns

Ambalaj

Tube

Element Configuration

Single

Current Continuous Drain Id25

240A Tc

Rds On Max Id Vgs

1.3m Ω @ 195A, 10V

Çalışma Sıcaklığı

-55°C~175°C TJ

Kılıf / Paket

TO-262-3 Wide Leads

Fall Time Typ

110 ns

Terminal Sayısı

3

Continuous Drain Current Id

240A

Montaj Tipi

Through Hole

Radyasyon Dayanımı

No

Threshold Voltage

2V

Operating Mode

ENHANCEMENT MODE

ECCN Kodu

EAR99

Input Capacitance Ciss Max Vds

7630pF @ 19V

Power Dissipation

300W

Transistor Element Material

SILICON

RoHS Durumu

ROHS3 Compliant

Drive Voltage Max Rds On Min Rds On

10V

Genişlik

4.83mm

Fabrika Tedarik Süresi

16 Weeks

Gate Charge Qg Max Vgs

180nC @ 10V

Vgsth Max Id

4V @ 250μA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Plating

Tin

Reach Svhc

No SVHC

Nominal Vgs

2 V

Montaj

Through Hole

Fet Type

N-Channel

Yükseklik

11.3mm

Additional Feature

AVALANCHE RATED, HIGH RELIABILITY, ULTRA-LOW RESISTANCE

Vgs Max

±20V
