DMPH6050SK3Q-13

Teknik Özellikler

Terminal Kaplaması

Matte Tin (Sn)

ECCN Kodu

EAR99

Fet Type

P-Channel

Drain Currentmax Abs Id

7.2A

Ds Breakdown Voltagemin

60V

Case Connection

DRAIN

Current Continuous Drain Id25

7.2A Ta 23.6A Tc

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Montaj

Surface Mount

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Pulsed Drain Currentmax Idm

40A

Transistor Element Material

SILICON

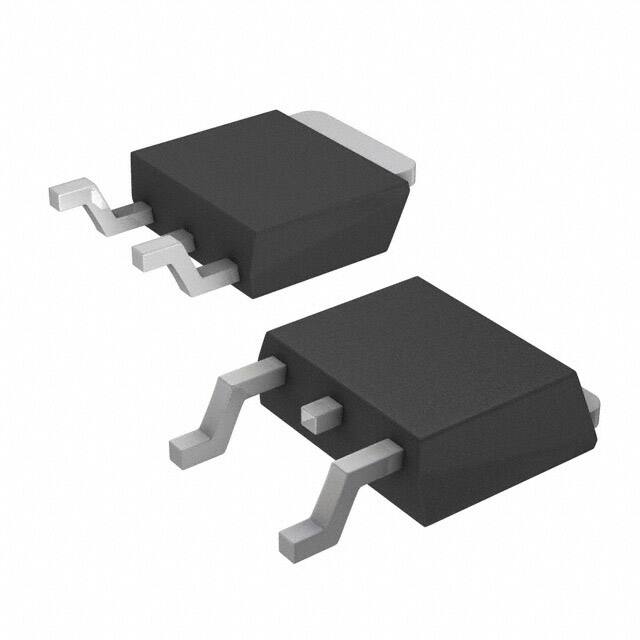

Kılıf / Paket

TO-252-3, DPak (2 Leads + Tab), SC-63

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

JESD-609 Kodu

e3

Drainsource On Resistancemax

0.07Ohm

Avalanche Energy Rating Eas

31 mJ

Input Capacitance Ciss Max Vds

1377pF @ 30V

Vgs Max

±20V

Terminal Formu

GULL WING

Çalışma Sıcaklığı

-55°C~175°C TJ

Number Of Elements

1

RoHS Durumu

ROHS3 Compliant

Drain To Source Voltage Vdss

60V

REACH Uyumluluk Kodu

not_compliant

Rds On Max Id Vgs

50m Ω @ 7A, 10V

Transistor Application

SWITCHING

Gate Charge Qg Max Vgs

25nC @ 10V

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Continuous Drain Current Id

23.6A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Power Dissipation Max

1.9W Ta

Ambalaj

Tape & Reel (TR)

Vgsth Max Id

3V @ 250μA

Terminal Sayısı

2

Terminal Pozisyonu

SINGLE
