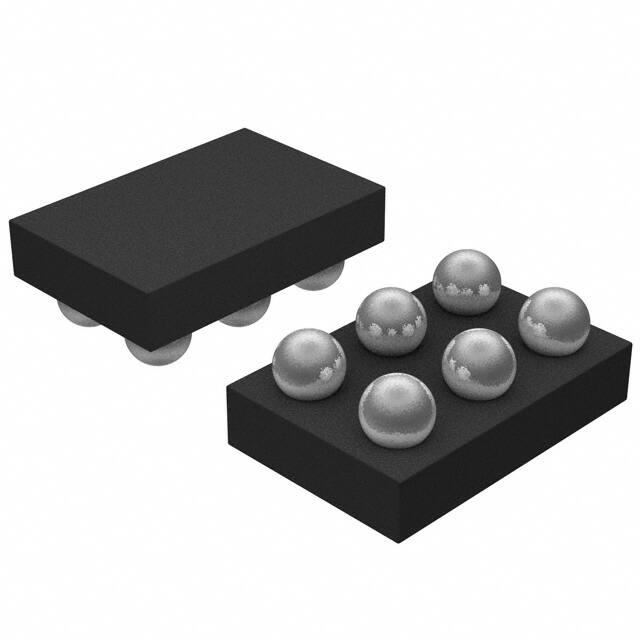

DMP2070UCB6-7

Teknik Özellikler

Kılıf / Paket

6-UFBGA, WLBGA

Montaj

Surface Mount

Pin Sayısı

6

Kurşunsuz Kodu

yes

Tepe Reflow Sıcaklığı (°C)

260

Tepe Reflow Süresi (maks. sn)

40

Vgs Max

±8V

Additional Feature

HIGH RELIABILITY

Rds On Max Id Vgs

70m Ω @ 1A, 4.5V

Drain To Source Breakdown Voltage

20V

Reference Standard

AEC-Q101

Turn On Delay Time

7.3 ns

Fabrika Tedarik Süresi

7 Weeks

Reach Svhc

No SVHC

Montaj Tipi

Surface Mount

Gate Charge Qg Max Vgs

2.9nC @ 4.5V

Terminal Sayısı

6

Number Of Elements

1

Vgsth Max Id

1V @ 250μA

Uzunluk

1mm

Drive Voltage Max Rds On Min Rds On

1.5V 4.5V

Terminal Pozisyonu

BOTTOM

Rise Time

14ns

Drainsource On Resistancemax

0.15Ohm

Fall Time Typ

32 ns

Gate To Source Voltage Vgs

8V

Drain Currentmax Abs Id

3.5A

ECCN Kodu

EAR99

Continuous Drain Current Id

2.5A

Fet Type

P-Channel

Input Capacitance Ciss Max Vds

210pF @ 10V

Turn Off Delay Time

42.6 ns

JESD-609 Kodu

e1

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Genişlik

1.5mm

Radyasyon Dayanımı

No

Terminal Formu

BALL

Operating Mode

ENHANCEMENT MODE
