DMN2020UFCL-7

Teknik Özellikler

Turn On Delay Time

3.8 ns

Vgsth Max Id

900mV @ 250μA

Çalışma Sıcaklığı

-55°C~150°C TJ

Yayın Yılı

2013

Montaj

Surface Mount

Drain To Source Breakdown Voltage

20V

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Kapasitans

1.788nF

Current Continuous Drain Id25

9A Ta

Fall Time Typ

6.8 ns

Continuous Drain Current Id

9A

Element Configuration

Single

Nem Hassasiyeti (MSL)

1 (Unlimited)

Rise Time

5.7ns

Number Of Channels

1

Input Capacitance Ciss Max Vds

1788pF @ 10V

Gate To Source Voltage Vgs

10V

Pin Sayısı

6

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Gate Charge Qg Max Vgs

21.5nC @ 4.5V

Fet Type

N-Channel

Fabrika Tedarik Süresi

23 Weeks

Temel Parça No

DMN2020

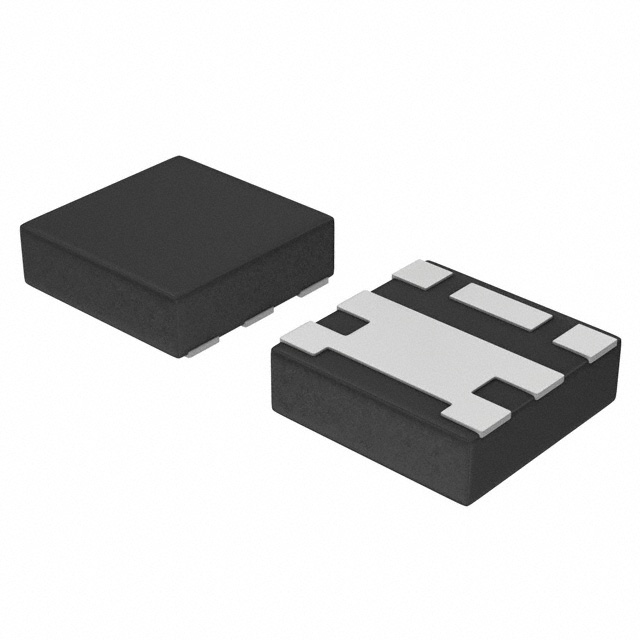

Kılıf / Paket

6-PowerUFDFN

Turn Off Delay Time

33 ns

Vgs Max

±10V

JESD-609 Kodu

e4

Ambalaj

Tape & Reel (TR)

Power Dissipation Max

610mW Ta

Rds On Max Id Vgs

14m Ω @ 9A, 4.5V

Drive Voltage Max Rds On Min Rds On

1.8V 4.5V

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Parça Durumu

Active
