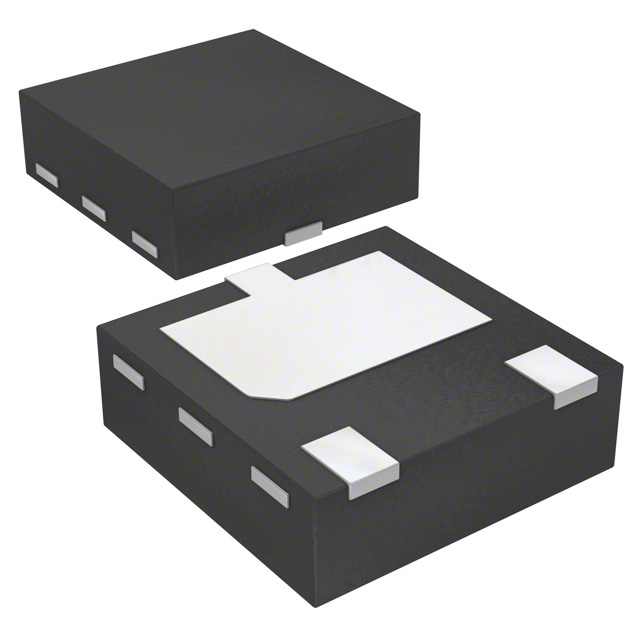

DMG3415UFY4Q-7

Teknik Özellikler

Current Continuous Drain Id25

2.5A Ta

Power Dissipation Max

650mW Ta

Terminal Pozisyonu

DUAL

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Reference Standard

AEC-Q101

Transistor Application

SWITCHING

Transistor Element Material

SILICON

Terminal Formu

NO LEAD

Additional Feature

HIGH RELIABILITY

Kılıf / Paket

3-XDFN

Montaj Tipi

Surface Mount

Vgs Max

±8V

Input Capacitance Ciss Max Vds

282pF @ 10V

Yayın Yılı

2016

Ds Breakdown Voltagemin

16V

Fabrika Tedarik Süresi

15 Weeks

Montaj

Surface Mount

Case Connection

DRAIN

JESD-609 Kodu

e4

Drain Currentmax Abs Id

0.0025A

ECCN Kodu

EAR99

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Number Of Elements

1

Configuration

SINGLE WITH BUILT-IN DIODE

Çalışma Sıcaklığı

-55°C~150°C TJ

Parça Durumu

Active

Gate Charge Qg Max Vgs

10nC @ 4.5V

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Drive Voltage Max Rds On Min Rds On

1.8V 4.5V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Continuous Drain Current Id

2.5A

Rds On Max Id Vgs

39m Ω @ 4A, 4.5V

Fet Type

P-Channel

Terminal Sayısı

3

Drain To Source Voltage Vdss

16V

Operating Mode

ENHANCEMENT MODE

Ambalaj

Tape & Reel (TR)

Vgsth Max Id

1V @ 250μA

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED
