AOW7S60

Teknik Özellikler

Gate Charge Qg Max Vgs

8.2nC @ 10V

Fet Type

N-Channel

Rds On Max Id Vgs

600m Ω @ 3.5A, 10V

Montaj

Through Hole

Current Continuous Drain Id25

7A Tc

Vgsth Max Id

3.9V @ 250μA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Radyasyon Dayanımı

No

Fabrika Tedarik Süresi

16 Weeks

RoHS Durumu

ROHS3 Compliant

Seri

aMOS™

Drain To Source Voltage Vdss

600V

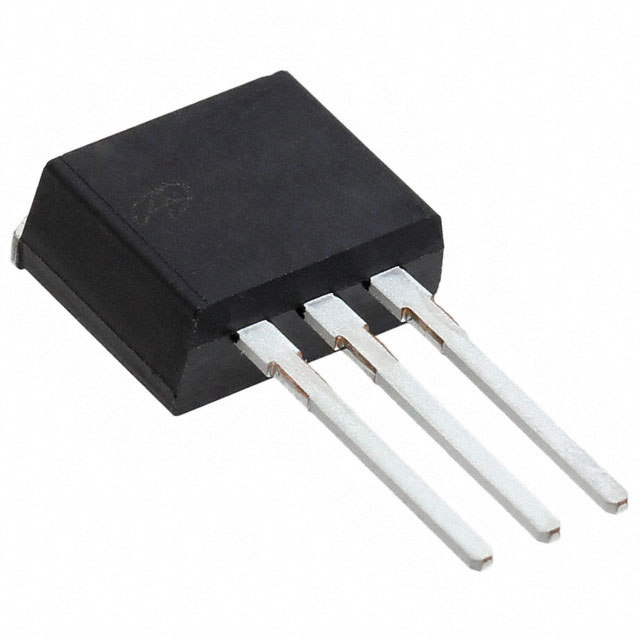

Kılıf / Paket

TO-262-3 Long Leads, I2Pak, TO-262AA

Parça Durumu

Not For New Designs

Vgs Max

±30V

Ambalaj

Tube

Continuous Drain Current Id

7A

Input Capacitance Ciss Max Vds

372pF @ 100V

Çalışma Sıcaklığı

-55°C~150°C TJ

Yayın Yılı

2010

Number Of Elements

1

Power Dissipation

104W

Drive Voltage Max Rds On Min Rds On

10V

Power Dissipation Max

104W Tc

Gate To Source Voltage Vgs

30V
