AON7405

Teknik Özellikler

Montaj

Surface Mount

Vgs Max

±25V

Yayın Yılı

2011

Parça Durumu

Last Time Buy

Drive Voltage Max Rds On Min Rds On

4.5V 10V

Montaj Tipi

Surface Mount

Current Continuous Drain Id25

25A Ta 50A Tc

Power Dissipation Max

6.25W Ta 83W Tc

Nem Hassasiyeti (MSL)

1 (Unlimited)

Input Capacitance Ciss Max Vds

2940pF @ 15V

Continuous Drain Current Id

50A

Rds On Max Id Vgs

6.2m Ω @ 20A, 10V

Drain To Source Voltage Vdss

30V

Çalışma Sıcaklığı

-55°C~150°C TJ

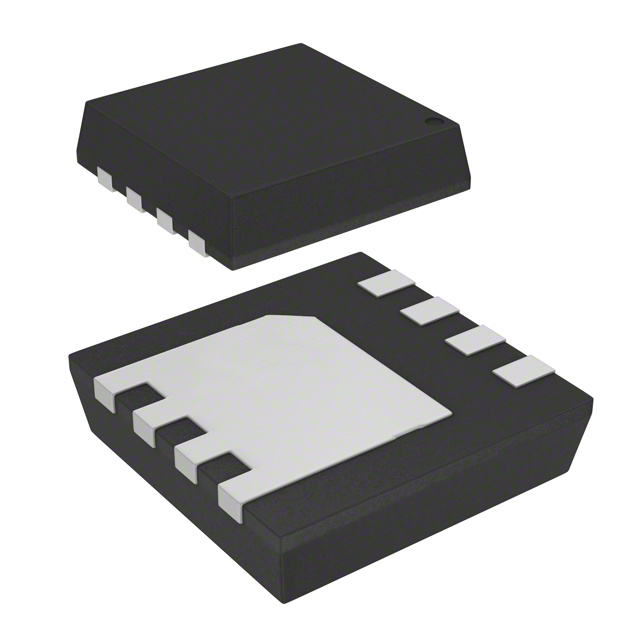

Kılıf / Paket

8-PowerWDFN

Fet Type

P-Channel

Gate Charge Qg Max Vgs

51nC @ 10V

Vgsth Max Id

2.8V @ 250μA

Pin Sayısı

8

Ambalaj

Tape & Reel (TR)

Fabrika Tedarik Süresi

16 Weeks

Operating Mode

ENHANCEMENT MODE

Configuration

Single

RoHS Durumu

ROHS3 Compliant
