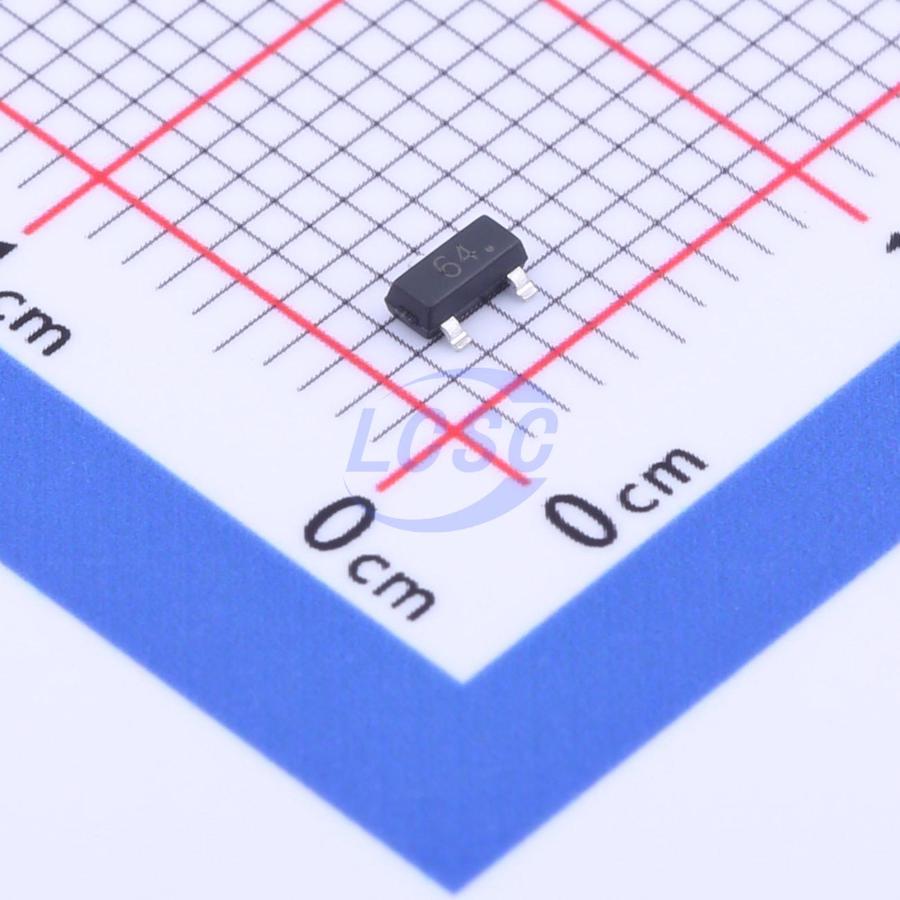

DTC114YCA

Specifications

Input Voltage Viofficvce

300mV@100uA,5V

R2

47K+

Power Dissipation

200 mW

Pcmw

200

Max Collector Current

70 mA

Paket

Tape & Reel (TR)

Lifecycle Status

Production (Last Updated: 5 months ago)

Polarity

NPN

Transition Frequency

250 MHz

Power Dissipation Pd

200mW

Transistor Type

1 NPN - bias preset

Voonv

0.3

Vccv

50

R1

10K+

Dc Current Gain Hfeicvce

68@5mA,5V

Output Voltage Voonioii

300mV@5mA,0.25mA

Number Of Terminals

3

Input Voltage Vionicvce

1.4V@1mA,0.3V

Hfemin

68

Ioma

100

Resistor Ratio

4.7

Reach Svhc

Yes

Input Resistor

10kΩ

Number Of Elements

1

Max Power Dissipation

200 mW

RoHS

true

Gi

68

Collector Emitter Voltage Vceo

50 V
