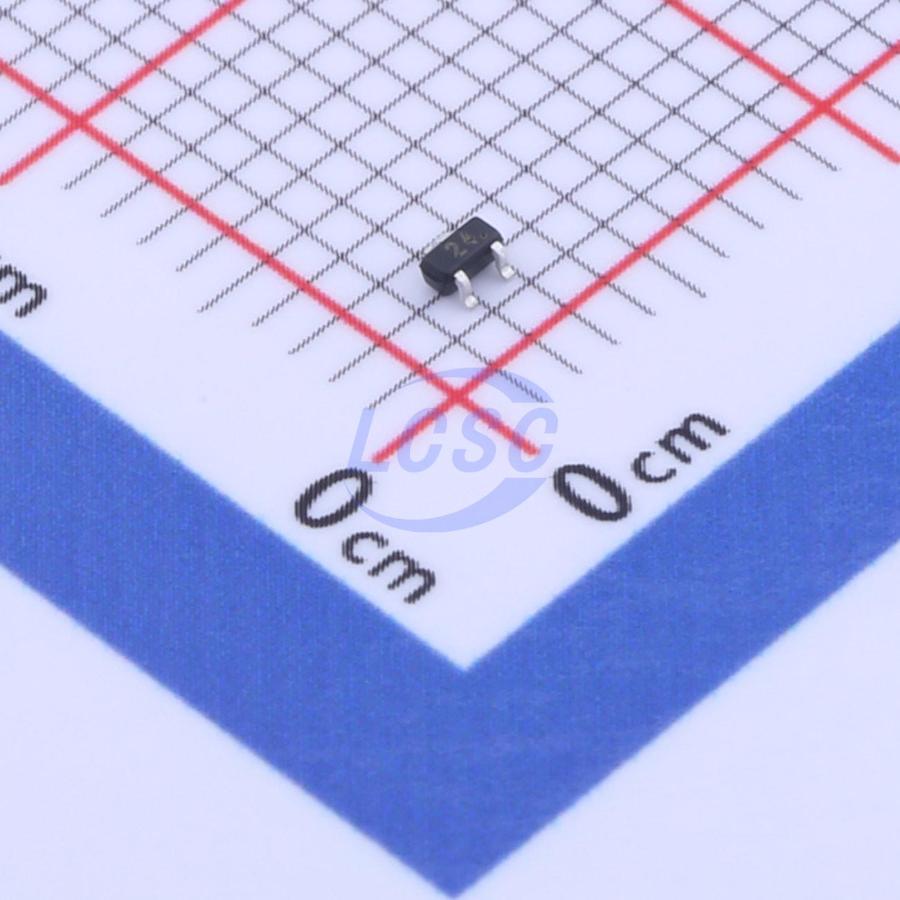

DTC114EE

Specifications

Input Voltage Vionicvce

3V@10mA,0.3V

Input Voltage Viofficvce

500mV@100uA,5V

Output Voltage Voonioii

300mV@10mA,0.5mA

Dc Current Gain Hfeicvce

30@5mA,5V

R2

10K+

Input Resistor

10kΩ

Pcmw

150

Resistor Ratio

1

Ioma

100

Polarity

NPN

Gi

30

RoHS

true

Paket

Tape & Reel (TR)

Vccv

50

R1

10K+

Power Dissipation Pd

150mW

Voonv

0.3

Transistor Type

1 NPN - bias preset
