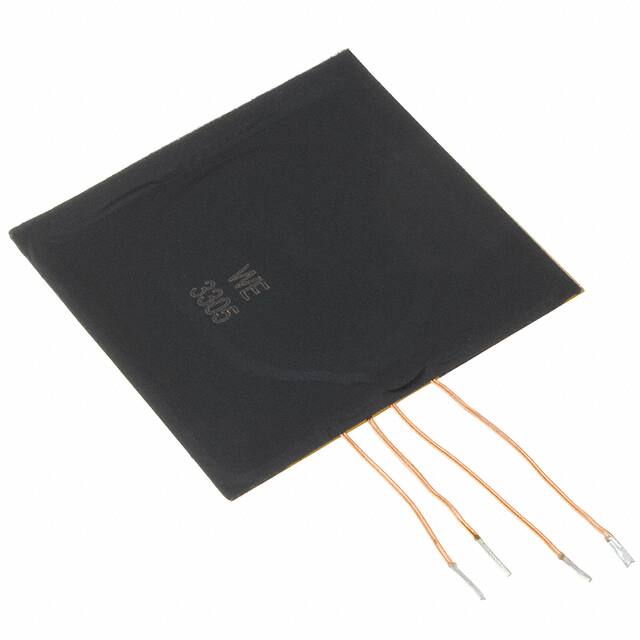

760308103305

Specifications

Endüktans

8.8μH, 1.4μH

Parça Durumu

Active

Inductance Tolerance

10%

Çalışma Sıcaklığı

-20°C~105°C

Current Rating Amps

2.6A 5A

Tip

2 Coil, 1 Layer

Q Freq

30 @ 125Khz, 47 @ 125kHz

Dc Resistance Dcr

220mOhm Max 100mOhm Max

Seri

WE-WPCC

Function

Receiver

Fabrika Tedarik Süresi

13 Weeks

Current Saturation

5A 5A

Frequencyselfresonant

22MHz 16MHz

Boyut / Ölçü

1.77Lx1.73W x 0.03 H 45.0mmx44.0mmx0.75mm

Tolerans

±10%

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant
