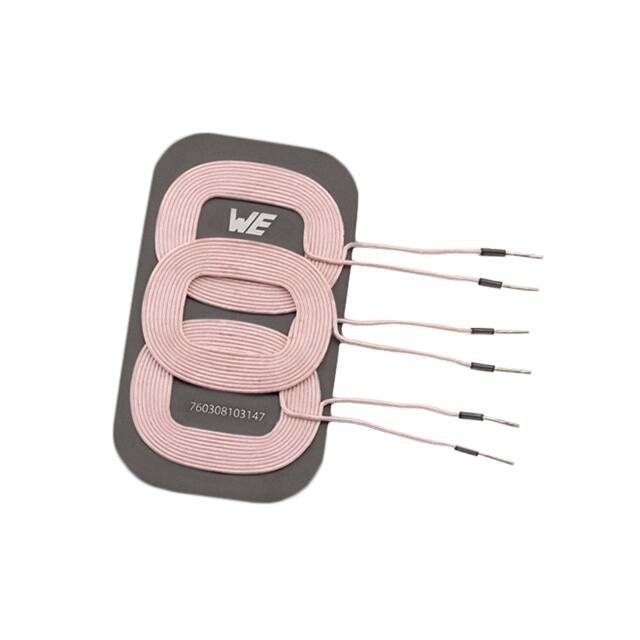

760308103147

Specifications

Q Freq

145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz

Tip

3 Coil, 1 Layer

Current Rating Amps

9A 10A 9A

Inductance Tolerance

10%

Çalışma Sıcaklığı

-20°C~105°C

Parça Durumu

Active

Endüktans

8.5μH, 7.5μH, 8.5μH

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Tolerans

±10%

Current Saturation

18A

Boyut / Ölçü

3.94Lx2.01W x 0.20 H 100.0mmx51.0mmx5.2mm

Frequencyselfresonant

11MHz

Fabrika Tedarik Süresi

42 Weeks

Function

Receiver, Transmitter

Dc Resistance Dcr

56mOhm Max

Seri

WE-WPCC
