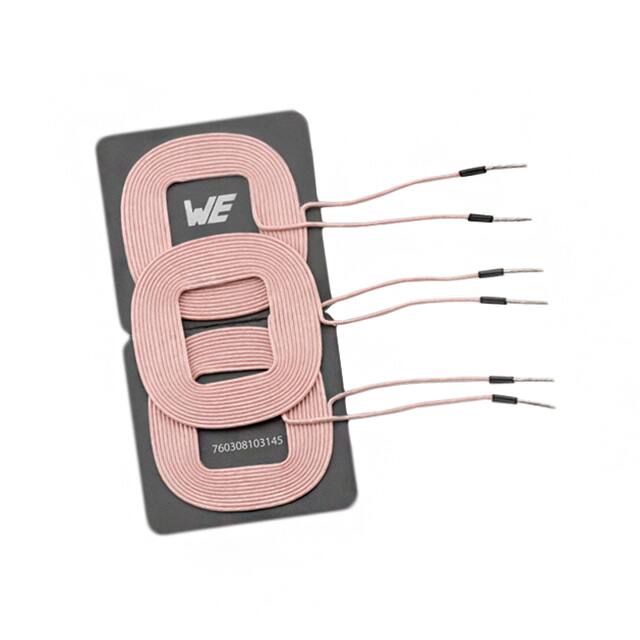

760308103145

Specifications

Çalışma Sıcaklığı

-20°C~105°C

Inductance Tolerance

10%

Current Rating Amps

8.5A

Tip

3 Coil, 1 Layer

Q Freq

150 @ 125kHz, 145 @ 125kHz

Endüktans

11.3μH

Parça Durumu

Active

Tolerans

±10%

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Dc Resistance Dcr

83mOhm Max

Seri

WE-WPCC

Fabrika Tedarik Süresi

63 Weeks

Function

Receiver, Transmitter

Current Saturation

24A

Boyut / Ölçü

4.29Lx2.20W x 0.20 H 109.0mmx56.0mmx5.2mm

Frequencyselfresonant

10MHz
