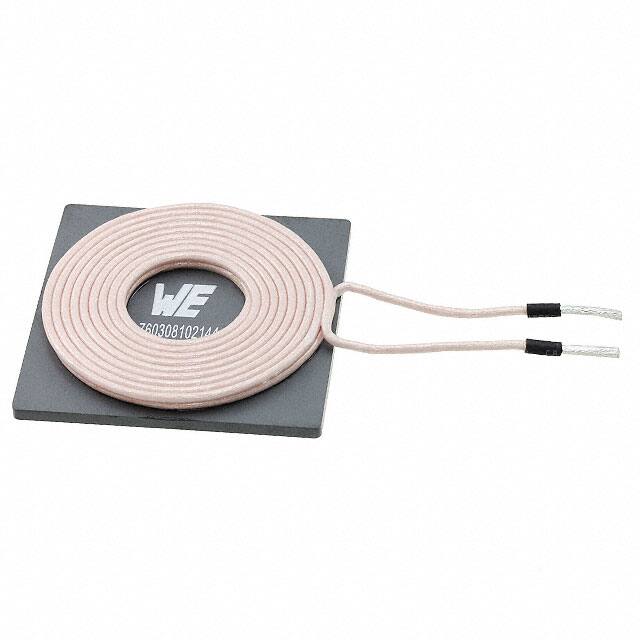

760308102144

Specifications

Current Rating Amps

9.5A

Tip

1 Coil, 2 Layer

Q Freq

220 @ 125kHz

Çalışma Sıcaklığı

-20°C~105°C

Inductance Tolerance

10%

Parça Durumu

Active

Endüktans

19.5μH

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Tolerans

±10%

Current Saturation

20A

Boyut / Ölçü

2.10Lx2.10W x 0.28 H 53.30mmx53.30mmx7.00mm

Frequencyselfresonant

5MHz

Dc Resistance Dcr

45mOhm Max

Seri

WE-WPCC

Fabrika Tedarik Süresi

35 Weeks

Function

Transmitter
