Volume pricing
- 1+ pcs$1.75
- 10+ pcs$1.65
- 100+ pcs$1.56
- 500+ pcs$1.47
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

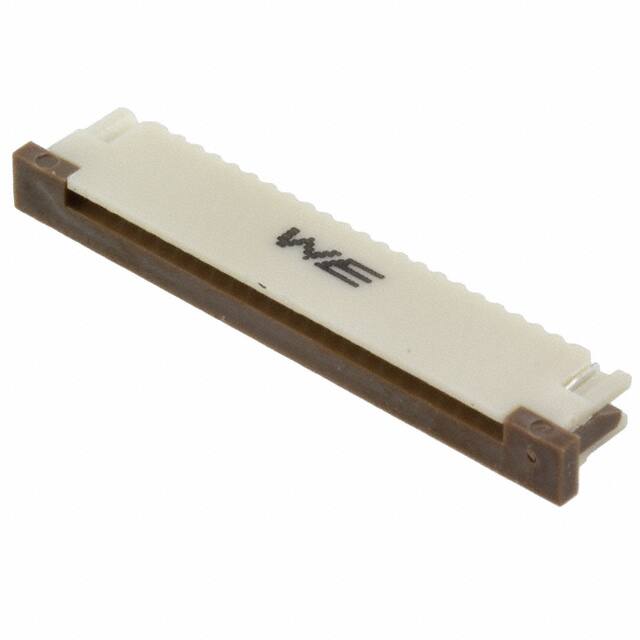

Specifications
- Cable End Type
- Tapered
- Height Above Board
- 0.116 2.95mm
- Contact Materials
- Phosphor Bronze
- Seri
- WR-FPC
- Pozisyon Sayısı
- 22
- Locking Feature
- Slide Lock
- Contact Finish Thickness
- 100.0μin 2.54μm
- Actuatorcolor
- Brown
- Sıra Sayısı
- 1
- Material Flammability Rating
- UL94 V-0
- Contact Plating
- Tin
- Terminal
- Solder
- Çalışma Sıcaklığı
- -25°C~85°C
- Parça Durumu
- Discontinued
- Orientation
- Horizontal
- Uzunluk
- 29mm
- Lead Pitch
- 1mm
- Nominal Gerilim
- 125V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Maks. Çalışma Sıcaklığı
- 85°C
- Flat Flex Type
- FPC
- Reach Svhc
- Unknown
- Actuator Material
- Polyphenylene Sulfide (PPS)
- Genişlik
- 2.95mm
- Montaj
- Surface Mount
- Pitch
- 0.039 1.00mm
- Özellikler
- Solder Retention, Zero Insertion Force (ZIF)
- Flammability Rating
- UL94 V-0
- Operating Supply Voltage
- 125V
- Akım Değeri
- 1A
- Housing Material
- Polyphenylene Sulfide (PPS)
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish
- Tin
- Ambalaj
- Cut Tape (CT)
- Gender
- Receptacle
- Contact Resistance
- 20mOhm
- Current Rating Amps
- 1A
- Pin Sayısı
- 22
- Housing Color
- Beige
- Ffc Fcb Thickness
- 0.29mm ~ 0.34mm
