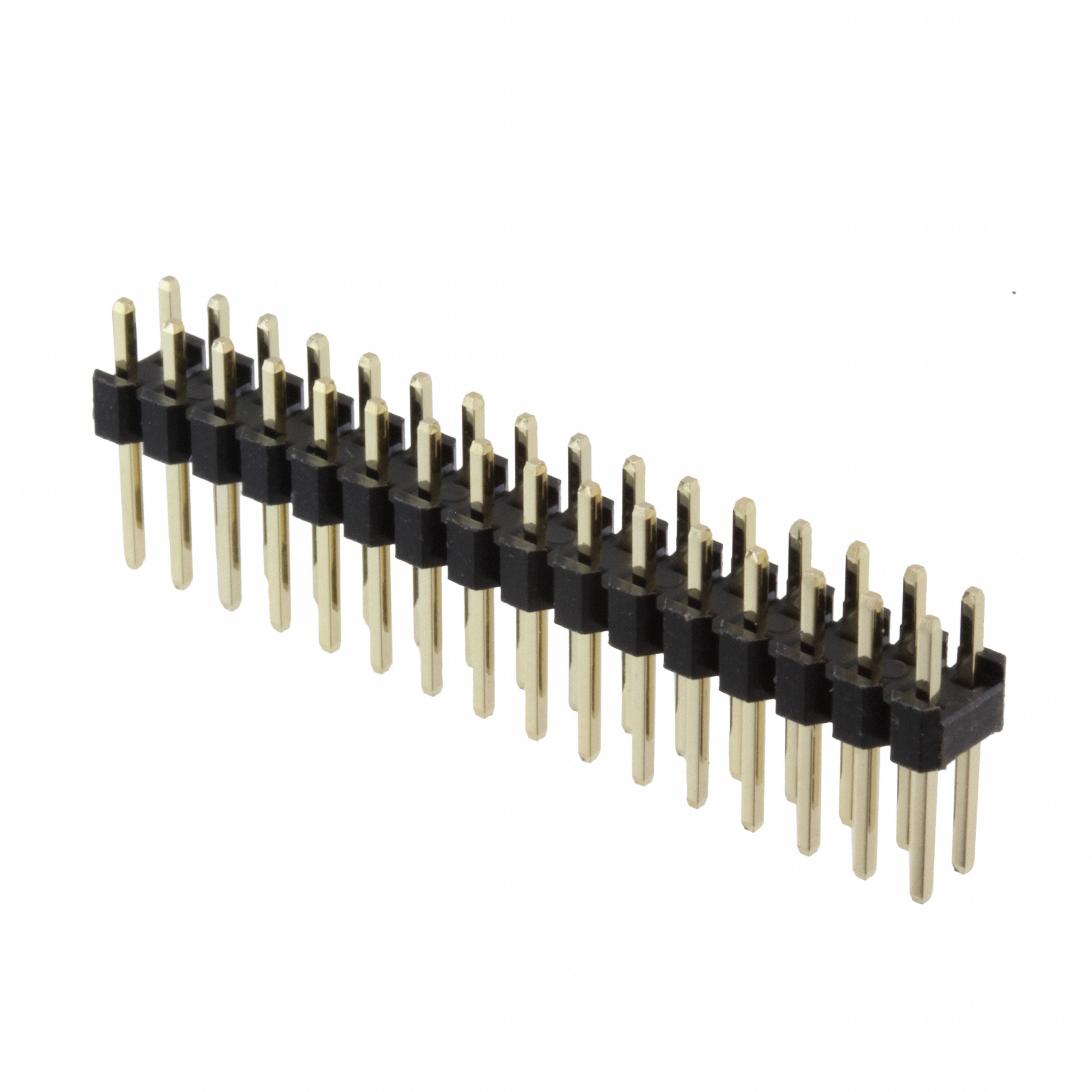

61303221121

Specifications

Insulation Materials

Polybutylene Terephthalate (PBT)

Reach Svhc

Unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Shape

Square

Overall Contact Length

0.454 11.54mm

Seri

WR-PHD

Ambalaj

Bulk

Sıra Sayısı

2

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

250V

Parça Durumu

Active

Gender

Male

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Connector Type

Header

Contact Lengthmating

0.236 6.00mm

Insulation Height

0.100 2.54mm

Çalışma Sıcaklığı

-40°C~125°C

Style

Board to Board or Cable

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Akım Değeri

3A

Contact Length Post

0.118 3.00mm

Number Of Contacts

32

Orientation

Vertical

Terminal

Solder

Renk

Black

Nominal Gerilim

250V

Pozisyon Sayısı

32

Contact Materials

Copper Alloy

Pitch Mating

0.100 2.54mm

Current Rating Amps

3A

Row Spacing Mating

0.100 (2.54mm)

Pin Sayısı

32

Contact Plating

Gold

Montaj

Through Hole

Fastening Type

Push-Pull
