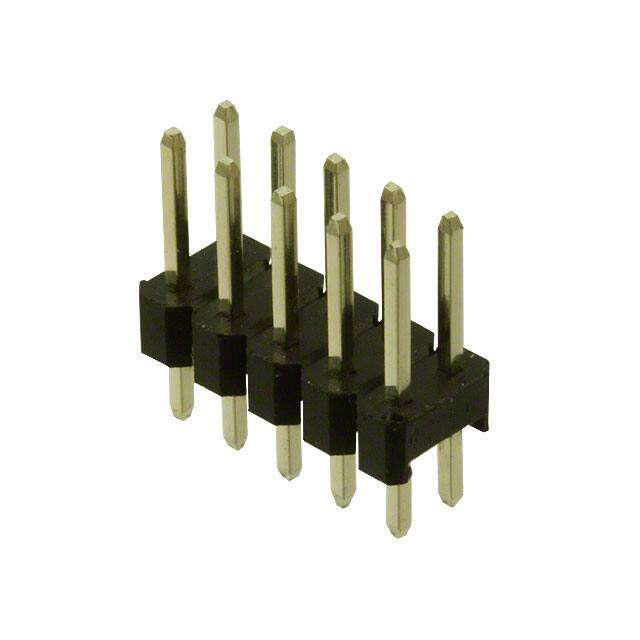

Specifications
- Pozisyon Sayısı
- 10
- Nominal Gerilim
- 250V
- Renk
- Black
- Terminal
- Solder
- Orientation
- Vertical
- Style
- Board to Board or Cable
- Contact Resistance
- 20mOhm
- Shrouding
- Unshrouded
- Fastening Type
- Push-Pull
- Row Spacing Mating
- 0.100 (2.54mm)
- Sıra Sayısı
- 2
- Maks. Çalışma Sıcaklığı
- 105°C
- Contact Shape
- Square
- Overall Contact Length
- 0.454 11.54mm
- Seri
- WR-PHD
- Lead Pitch
- 2.54mm
- Pitch
- 2.54mm
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Height
- 0.100 2.54mm
- Connector Type
- Header
- Gender
- Male
- Material Flammability Rating
- UL94 V-0
- Flammability Rating
- UL94 V-0
- Operating Supply Voltage
- 250V
- Genişlik
- 12.7mm
- Housing Material
- PBT
- Number Of Contacts
- 10
- Contact Gender
- Male
- Number Of Positions Loaded
- All
- Akım Değeri
- 3A
- Contact Length Post
- 0.118 3.00mm
- Montaj Tipi
- Through Hole
- Çalışma Sıcaklığı
- -40°C~125°C
- Contact Finish Mating
- Gold
- Min. Çalışma Sıcaklığı
- -40°C
- Insulation Color
- Black
- Montaj
- Through Hole
- Pin Sayısı
- 10
- Contact Plating
- Gold
