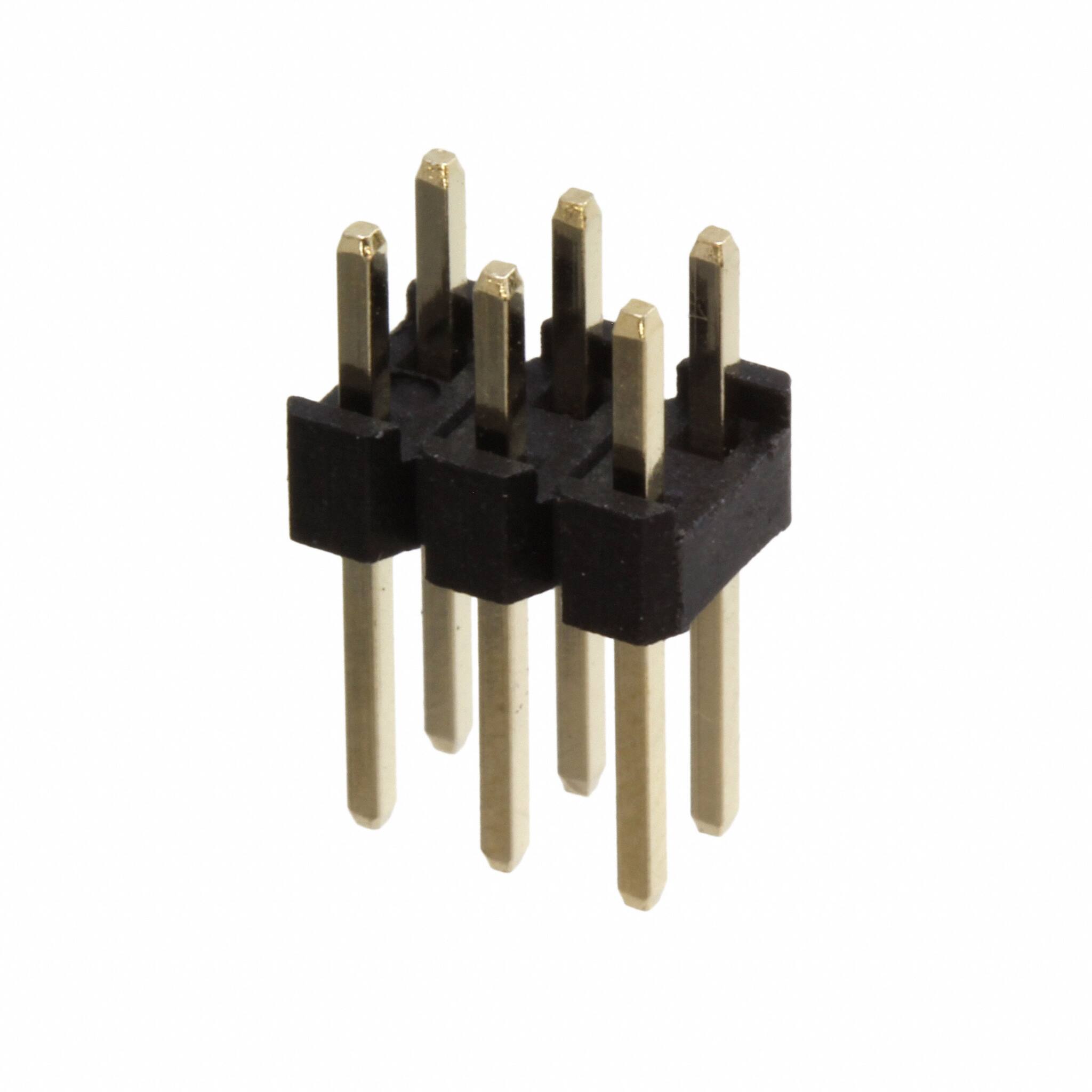

61300621121

Specifications

Pitch

2.54mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Reach Svhc

Unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Yükseklik

8.89mm

Ambalaj

Bulk

Sıra Sayısı

2

Maks. Çalışma Sıcaklığı

105°C

Contact Shape

Square

Overall Contact Length

0.454 11.54mm

Seri

WR-PHD

Operating Supply Voltage

250V

Parça Durumu

Active

Fabrika Tedarik Süresi

14 Weeks

Connector Type

Header

Contact Type

Male Pin

Gender

Male

Material Flammability Rating

UL94 V-0

Insulation Height

0.100 2.54mm

Contact Lengthmating

0.236 6.00mm

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~125°C

Style

Board to Board or Cable

Number Of Contacts

6

Orientation

Vertical

Akım Değeri

3A

Number Of Positions Loaded

All

Contact Length Post

0.118 3.00mm

Renk

Black

Terminal

Solder

Pozisyon Sayısı

6

Nominal Gerilim

250V

Current Rating Amps

3A

Contact Materials

Copper Alloy

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Montaj

Through Hole

Pin Sayısı

6
