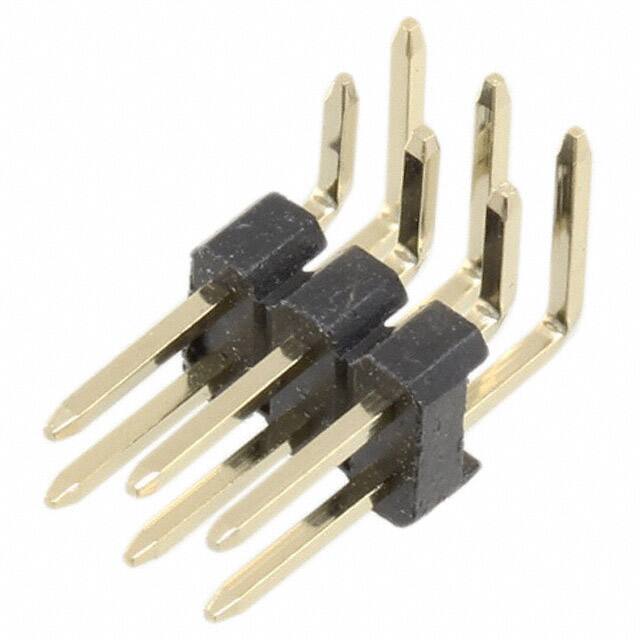

61300621021

Specifications

Insulation Materials

Polybutylene Terephthalate (PBT)

Reach Svhc

Unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Yükseklik

5.23mm

Lead Pitch

2.54mm

Maks. Çalışma Sıcaklığı

105°C

Contact Shape

Square

Seri

WR-PHD

Ambalaj

Bulk

Sıra Sayısı

2

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

250V

Parça Durumu

Active

Gender

Male

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Connector Type

Header

Contact Lengthmating

0.236 6.00mm

Insulation Height

0.200 5.08mm

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Board or Cable

Montaj Tipi

Through Hole, Right Angle

Number Of Positions Loaded

All

Akım Değeri

3A

Contact Length Post

0.118 3.00mm

Number Of Contacts

6

Terminal

Solder

Renk

Black

Nominal Gerilim

250V

Pozisyon Sayısı

6

Contact Materials

Copper Alloy

Pitch Mating

0.100 2.54mm

Current Rating Amps

3A

Row Spacing Mating

0.100 (2.54mm)

Pin Sayısı

6

Contact Plating

Gold

Montaj

Through Hole

Fastening Type

Push-Pull
