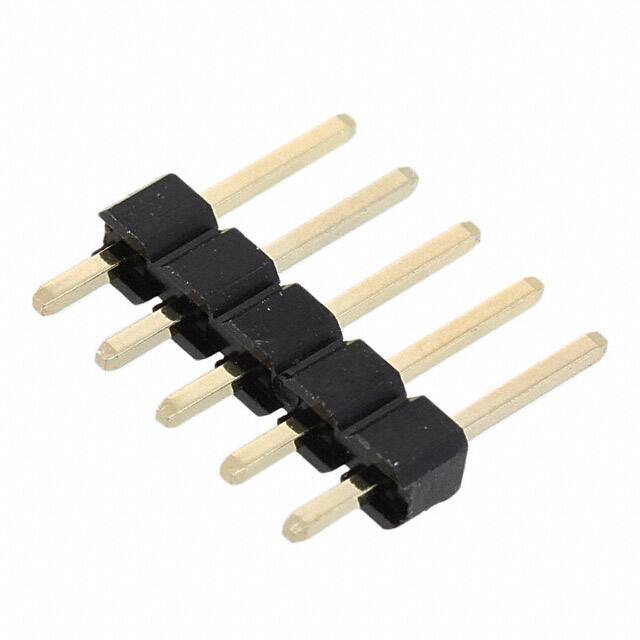

61300511121

Specifications

Contact Materials

Copper Alloy

Pitch Mating

0.100 2.54mm

Current Rating Amps

3A

Pin Sayısı

5

Contact Plating

Gold

Montaj

Through Hole

Fastening Type

Push-Pull

Insulation Color

Black

Shrouding

Unshrouded

Kurşunsuz

Lead Free

Contact Resistance

20mOhm

Contact Finish Mating

Gold

Min. Çalışma Sıcaklığı

-40°C

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Board or Cable

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Akım Değeri

3A

Contact Length Post

0.118 3.00mm

Number Of Contacts

5

Orientation

Vertical

Terminal

Solder

Renk

Black

Nominal Gerilim

250V

Pozisyon Sayısı

5

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

250V

Parça Durumu

Active

Gender

Male

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Connector Type

Header

Contact Lengthmating

0.236 6.00mm

Insulation Height

0.100 2.54mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Reach Svhc

Unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Yükseklik

8.89mm
