Volume pricing
- 1+ pcs$1.58
- 10+ pcs$1.49
- 100+ pcs$1.40
- 500+ pcs$1.32
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

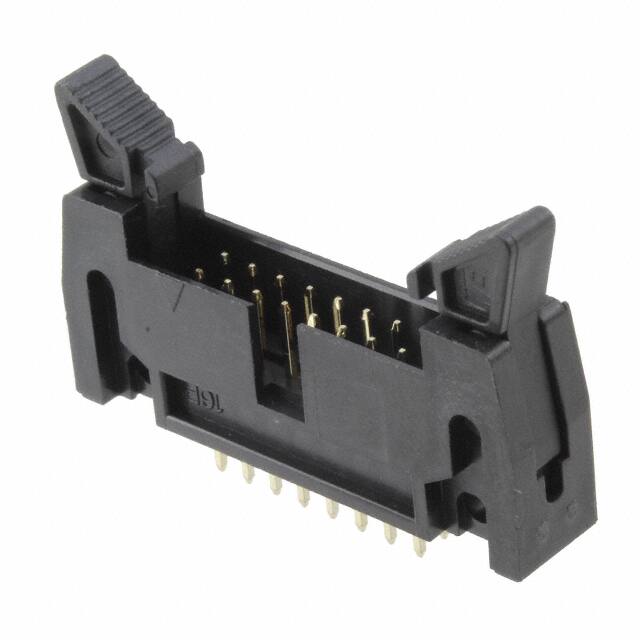

Specifications
- Contact Shape
- Square
- RoHS Durumu
- ROHS3 Compliant
- Insulation Height
- 0.669 17.00mm
- Fabrika Tedarik Süresi
- 15 Weeks
- Contact Resistance
- 20mOhm
- Contact Type
- Male Pin
- Contact Plating
- Gold
- Current Rating Amps
- 3A
- Çalışma Sıcaklığı
- -40°C~125°C
- Housing Material
- PBT
- Reach Svhc
- No SVHC
- Insulation Resistance
- 1GOhm
- Operating Supply Voltage
- 250V
- Pitch Mating
- 0.100 2.54mm
- Contact Length Post
- 0.134 3.40mm
- Fastening Type
- Latch Lock/Eject Hooks, Short
- Renk
- Black
- Min. Çalışma Sıcaklığı
- -40°C
- Terminal
- Solder
- Sıra Sayısı
- 2
- Pin Sayısı
- 16
- Shrouding
- Shrouded - 4 Wall
- Connector Type
- Header
- Lead Pitch
- 2.54mm
- Parça Durumu
- Active
- Contact Gender
- Male
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- Maks. Çalışma Sıcaklığı
- 125°C
- Uzunluk
- 8.3mm
- Gender
- Male
- Pozisyon Sayısı
- 16
- Nominal Gerilim
- 250V
- Yükseklik
- 24.5mm
- Material Flammability Rating
- UL94 V-0
- Özellikler
- Keying Slot
- Style
- Board to Cable/Wire
- Number Of Positions Loaded
- All
- Pitch
- 2.54mm
- Orientation
- Vertical
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
