Volume pricing
- 1+ pcs$0.38
- 10+ pcs$0.36
- 100+ pcs$0.34
- 500+ pcs$0.32
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

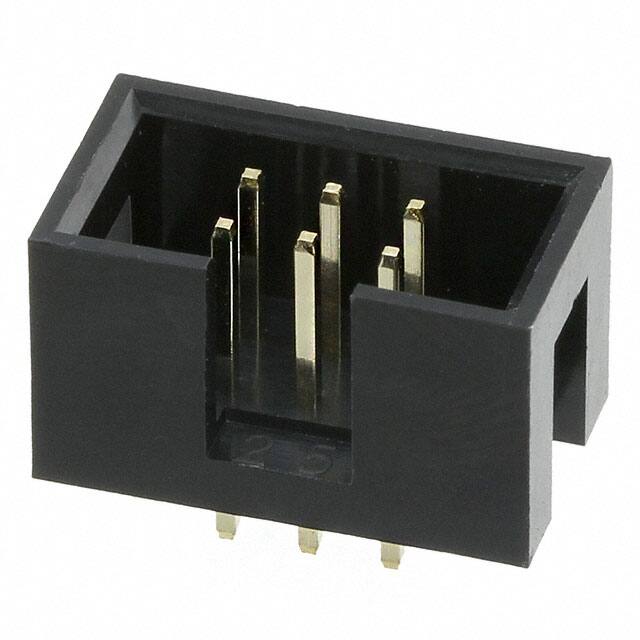

Specifications
- Pin Sayısı
- 6
- Row Spacing Mating
- 0.100 (2.54mm)
- Terminal
- Solder
- Sıra Sayısı
- 2
- Contact Finish Mating
- Gold
- Connector Type
- Header
- Lead Pitch
- 2.54mm
- Parça Durumu
- Active
- Shrouding
- Shrouded - 4 Wall
- Maks. Çalışma Sıcaklığı
- 125°C
- Montaj Tipi
- Through Hole
- Seri
- WR-BHD
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- Ambalaj
- Tray
- Nominal Gerilim
- 250V
- Pozisyon Sayısı
- 6
- Contact Materials
- Copper Alloy
- Gender
- Male
- Fabrika Tedarik Süresi
- 15 Weeks
- RoHS Durumu
- ROHS3 Compliant
- Insulation Height
- 0.358 9.10mm
- Contact Shape
- Square
- Orientation
- Vertical
- Çalışma Sıcaklığı
- -40°C~125°C
- Reach Svhc
- Unknown
- Pitch
- 2.54mm
- Özellikler
- Keying Slot
- Contact Plating
- Gold
- Contact Type
- Male Pin
- Style
- Board to Cable/Wire
- Number Of Positions Loaded
- All
- Current Rating Amps
- 3A
- Contact Resistance
- 20mOhm
- Material Flammability Rating
- UL94 V-0
- Pitch Mating
- 0.100 2.54mm
- Contact Length Post
- 0.118 3.00mm
- Number Of Contacts
- 6
- Fastening Type
- Push-Pull
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Operating Supply Voltage
- 250V
