Volume pricing
- 1+ pcs$6.84
- 10+ pcs$6.45
- 100+ pcs$6.08
- 500+ pcs$5.74
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

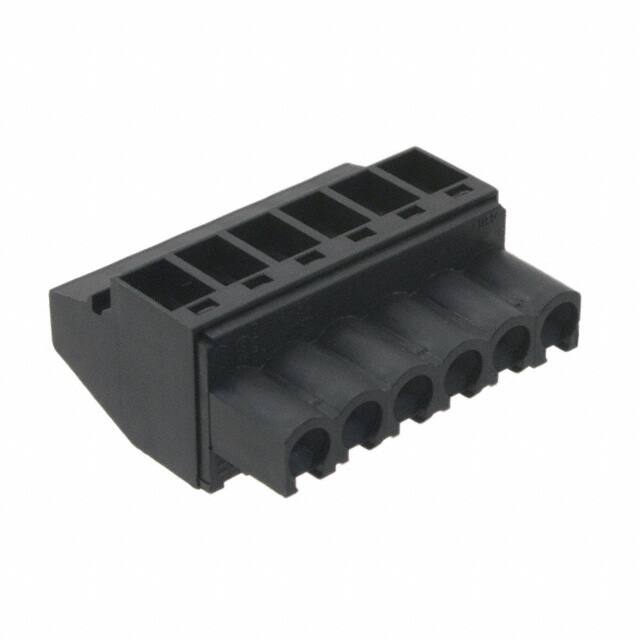

Specifications
- Çalışma Sıcaklığı
- -50°C~100°C
- ECCN Kodu
- EAR99
- Wire Gauge Max
- 26 AWG
- Özellikler
- Retention Latches (Non-Wire Side)
- Terminal Stili
- Screw - Clamping Yoke (Tension Sleeve)
- Montaj
- Free Hanging
- Number Of Ways
- 6
- Safety Approval
- UL; CSA
- Fabrika Tedarik Süresi
- 12 Weeks
- Connector Type
- Terminal Block
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Gerilim
- 300V
- Housing Material
- Polybutylene Terephthalate (PBT)
- Wirecable Gauge
- 12 AWG
- Terminal
- Screw
- Seri
- Omnimate BL
- Pitch
- 0.200 5.08mm
- Material Flammability Rating
- UL94 V-0
- Stripping Length
- 7mm
- Renk
- Black
- Voltageiec
- 400V
- RoHS Durumu
- RoHS Compliant
- Parça Durumu
- Active
- Akım
- 10A
- Contact Mating Finish
- Tin
- Insulation Height
- 0.555 14.10mm
- Additional Feature
- STANDARD: UL 94V-0
- Nominal Gerilim
- 300V
- Contact Materials
- Copper Alloy
- Screw Size
- M2.5
- Flammability Rating
- UL94 V-0
- Number Of Poles
- 6
- Onay Kuruluşu
- CSA, UR
- Number Of Levels
- 1
- Currentiec
- 23A
- Currentul
- 20A
- Ambalaj
- Box
- Number Of Decks
- 1
- Plug Wire Entry
- 270°
- Wire Cross Section
- 4 mm2
