Volume pricing
- 1+ pcs$11.91
- 10+ pcs$11.23
- 100+ pcs$10.60
- 500+ pcs$10.00
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- RoHS Durumu
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Renk
- Beige
- Wire Gauge Max
- 20 AWG
- Wire Gauge Min
- 8 AWG
- Nominal Gerilim
- 6kV
- Fabrika Tedarik Süresi
- 8 Weeks
- Number Of Ways
- 2
- Safety Approval
- UL; CSA; CE
- Sıra Sayısı
- 1
- Wire Gauge Or Range Awg
- 8-20 AWG
- HTS Kodu
- 8536.69.40.40
- Wire Gauge Or Range Mm
- 0.5-10mm2
- Uzunluk
- 65mm
- Number Of Decks
- 1
- Yükseklik
- 47.5mm
- Material Flammability Rating
- UL94 V-0
- Voltageiec
- 630V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Levels
- 1
- Yayın Yılı
- 2012
- Gerilim
- 300V
- Genişlik
- 7.9mm
- Onay Kuruluşu
- CE, CSA, UR
- Pozisyon Sayısı
- 2
- ECCN Kodu
- EAR99
- Disconnect Type
- Switch, Slide
- Terminal Stili
- Screw
- Stripping Length
- 12mm
- Parça Durumu
- Active
- Currentiec
- 41A
- Material Insulation
- Thermoplastic, Wemid

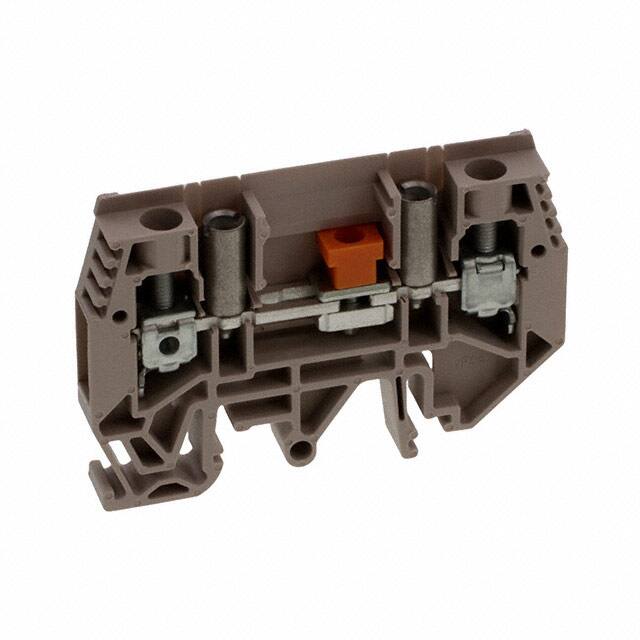

- Tip
- Disconnect
- Akım Değeri
- 41A
- Seri
- W
- Akım
- 45A
- Additional Feature
- UL 94V-0
