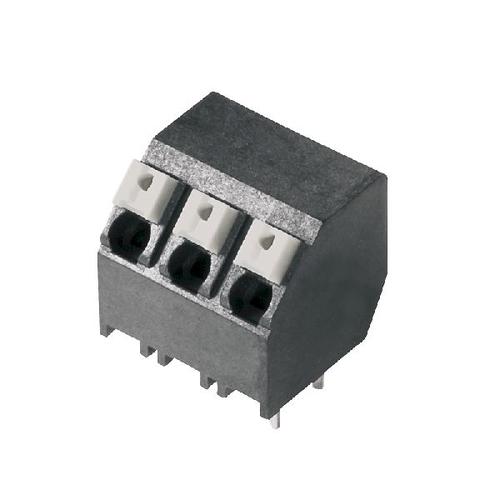

1888700000

Specifications

Additional Feature

LCP GF, 94V-0

Yayın Yılı

2011

Pitch

0.197 5.00mm

Stripping Length

8mm

Akım Değeri

10A

Akım

12A

Number Of Contacts

8

Wire Termination

Screwless - Push Button Clamp

Ambalaj

Tape & Reel (TR)

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Contact Material Plating

Copper Alloy - Tin Plated

Nominal Gerilim

300V

Seri

Omnimate LSF-SMT

Montaj Tipi

Through Hole

Montaj

Through Hole

Terminal

Screwless

Çalışma Sıcaklığı

-50°C~240°C

Fabrika Tedarik Süresi

12 Weeks

ECCN Kodu

EAR99

Wire Gauge Min

16 AWG

Radyasyon Dayanımı

No

Mating Orientation

45° (135°) Angle with Board

Wire Gauge Max

24 AWG

Parça Durumu

Active

Onay Kuruluşu

CSA, cURus

Number Of Decks

1

Wire Gauge

16-24 AWG

Contact Plating

Tin

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Number Of Ways

8

Renk

Black

Sıra Sayısı

1

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Safety Approval

UL; CSA

Number Of Levels

1

Fastening Method

PUSH-ON

Hole Diameter

1.1 mm
