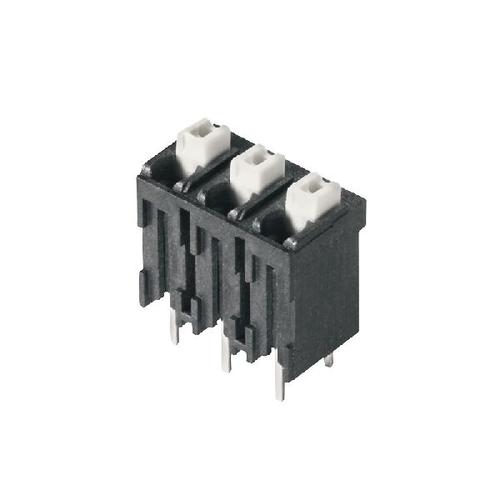

1876020000

Specifications

Pitch

0.197 5.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Wire Termination

Screwless - Push Button Clamp

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Material Plating

Copper Alloy - Tin Plated

Orientation

Straight

Wire Gauge

16-24 AWG

Parça Durumu

Active

Radyasyon Dayanımı

No

Flammability Rating

UL94 V-0

Yayın Yılı

2004

Contact Plating

Tin

Safety Approval

UL; VDE; CSA

Hole Diameter

1.1 mm

Terminal

Screwless

RoHS Durumu

RoHS Compliant

Wire Gauge Max

24 AWG

Montaj Tipi

Through Hole

Akım Değeri

10A

Akım

12A

Fastening Method

PUSH-ON

Montaj

Through Hole

Onay Kuruluşu

CSA, cURus

Additional Feature

GLASS FILLED LCP, 94V-0

Seri

Omnimate LSF-SMT

Fabrika Tedarik Süresi

12 Weeks

Mating Orientation

Vertical with Board

Number Of Decks

1

Çalışma Sıcaklığı

-50°C~120°C

Nominal Gerilim

300V

Renk

Black

HTS Kodu

8536.69.40.40

Ambalaj

Tape & Reel (TR)

Number Of Levels

1

Stripping Length

8mm

Number Of Contacts

2

Wire Gauge Min

16 AWG

Number Of Ways

2
