Volume pricing
- 1+ pcs$6.20
- 10+ pcs$5.85
- 100+ pcs$5.52
- 500+ pcs$5.20
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

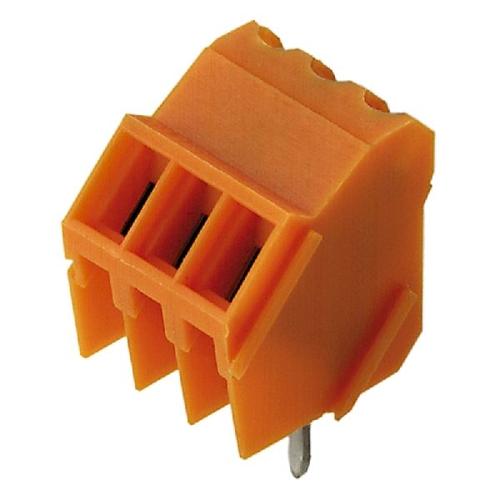

Specifications
- Akım Değeri
- 10A
- Kurşunsuz Kodu
- yes
- Number Of Positions Per Level
- 12
- Ambalaj
- Bulk
- Montaj Tipi
- Through Hole
- Contact Plating
- Tin
- Onay Kuruluşu
- CSA, UR
- Terminal
- Screw
- Hole Diameter
- 1.3 mm
- Wire Termination
- Screw - Clamping Yoke, Tension Sleeve
- Fabrika Tedarik Süresi
- 11 Weeks
- ECCN Kodu
- EAR99
- HTS Kodu
- 8536.69.40.40
- Renk
- Orange
- Screw Thread
- M2
- Pitch
- 0.138 3.50mm
- Wire Gauge Max
- 28 AWG
- Insulation Materials
- Nylon
- RoHS Durumu
- RoHS Compliant
- Contact Material Plating
- Copper Alloy - Tin Plated
- Number Of Levels
- 1
- Safety Approval
- UL; VDE; CSA
- Sıra Sayısı
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Housing Material
- Polyamide (PA), Nylon
- Reach Svhc
- No SVHC
- Çalışma Sıcaklığı
- -50°C~100°C
- Stripping Length
- 5mm
- Terminal And Terminal Block Type
- BARRIER STRIP TERMINAL BLOCK
- Gerilim
- 300V
- Additional Feature
- PA, 94V-2
- Flammability Rating
- UL94 V-2
- Montaj
- Through Hole
- Number Of Ways
- 12
- Radyasyon Dayanımı
- No
- Seri
- Omnimate LM
- Mating Orientation
- 45° (135°) Angle with Board
- Özellikler
- Interlocking (Side)
- Parça Durumu
- Obsolete
- Yayın Yılı
- 2015
